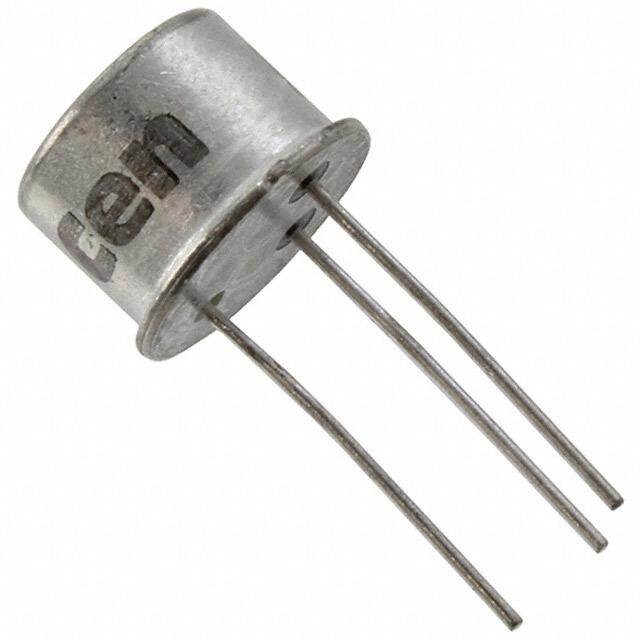

2N1480
RoHS
/
Package TO-39
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
Bipolar Transistors - BJT NPN SS Power
PDF
/
Inventory: 3061
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Continuous Collector Current 1.5A
DC Current Gain-Min (hFE) 20
hFE Min 20
Emitter Base Voltage (VEBO) 6V
Collector Base Voltage (VCBO) 100V
Frequency - Transition 1.5MHz
Collector Emitter Saturation Voltage 1.4V
Transition Frequency 1.5MHz
Collector Emitter Breakdown Voltage 55V
Max Collector Current 1.5A
Collector Emitter Voltage (VCEO) 1.4V
Gain Bandwidth Product 1.5MHz
Transistor Application SWITCHING
Power Dissipation-Max 5W
Configuration SINGLE
Polarity NPN
Number of Elements 1
Qualification Status Not Qualified
JESD-30 Code O-MBCY-W3
Pin Count 3
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form WIRE
Terminal Position BOTTOM
Subcategory Other Transistors
Min Operating Temperature -65°C
Max Operating Temperature 150°C
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 3
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2016
Physical
Package / Case TO-39
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
