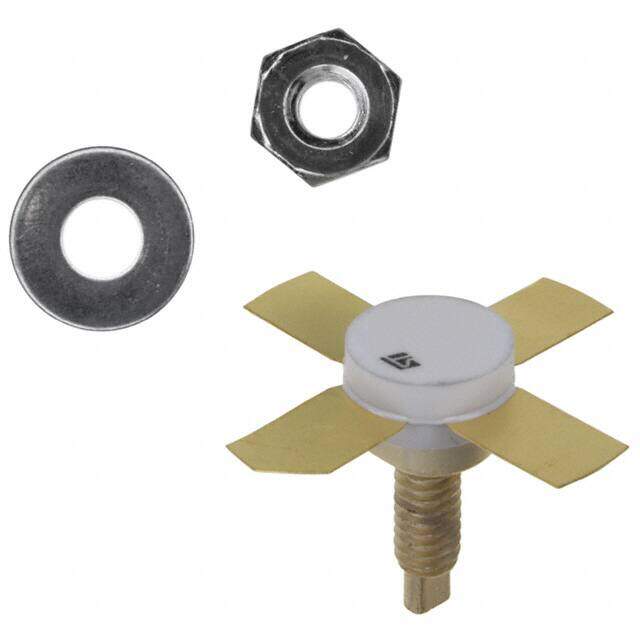

SD1275
RoHS
RoHS compliant
RoHS compliantPackage M135
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Description
RF Bipolar Transistors NPN 13.6V 160MHz
PDF
/
Inventory: 7613
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Chassis, Stud
Mounting Type Chassis, Stud Mount
Package / Case M135
Number of Pins 135
Transistor Element Material SILICON
Technical
Operating Temperature 200°C TJ
Packaging Bulk
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Gold (Au)
Subcategory Other Transistors
Voltage - Rated DC 36V
Max Power Dissipation 70W
Terminal Position RADIAL
Terminal Form FLAT
Peak Reflow Temperature (Cel) 260
Current Rating 8A
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number SD1275
Pin Count 4
JESD-30 Code O-PRPM-F4
Qualification Status Not Qualified
Number of Elements 1
Configuration SINGLE
Transistor Application AMPLIFIER
Polarity/Channel Type NPN
Transistor Type NPN
Collector Emitter Voltage (VCEO) 16V
Max Collector Current 8A
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 250mA 5V
Collector Emitter Breakdown Voltage 16V
Gain 9dB
Collector Base Voltage (VCBO) 36V
Emitter Base Voltage (VEBO) 4V
hFE Min 20
Continuous Collector Current 8A
Highest Frequency Band VERY HIGH FREQUENCY B
Dimensions
Height 19.05mm
Length 9.78mm
Width 9.78mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
