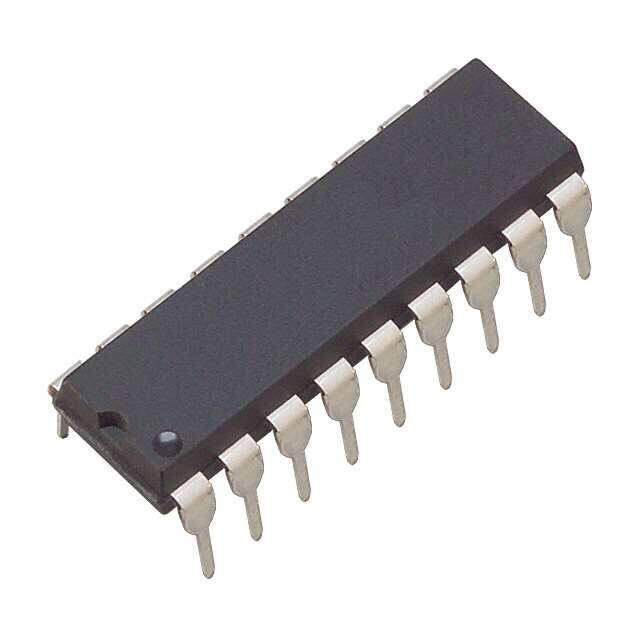

ULN2803AN
RoHS
RoHS compliant
RoHS compliantPackage 18-DIP (0.300, 7.62mm)
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Description
TEXAS INSTRUMENTS - ULN2803AN - DARLINGTON TRANSISTOR ARRAY
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.234696
≥1 USD $0.234696
Inventory: 62154
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6.35mm
Length 22.48mm
Height 4.57mm
Technical
Emitter Base Voltage (VEBO) 50V
Number of Drivers 8
Collector Emitter Saturation Voltage 1.1V
Collector Emitter Breakdown Voltage 50V
Vce Saturation (Max) @ Ib, Ic 1.6V @ 500μA, 350mA
JEDEC-95 Code MS-001AC
Max Collector Current 500mA
Collector Emitter Voltage (VCEO) 50V
Transistor Type 8 NPN Darlington
Transistor Application SWITCHING
Polarity NPN
Number of Elements 8
Pin Count 18
Base Part Number ULN2803
Current Rating 500mA
Terminal Position DUAL
Voltage - Rated DC 50V
Additional Feature LOGIC LEVEL COMPATIBLE
ECCN Code EAR99
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Packaging Tube
Operating Temperature -40°C~85°C TA
Physical
Transistor Element Material SILICON
Weight 1.26609g
Number of Pins 18
Package / Case 18-DIP (0.300, 7.62mm)
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
