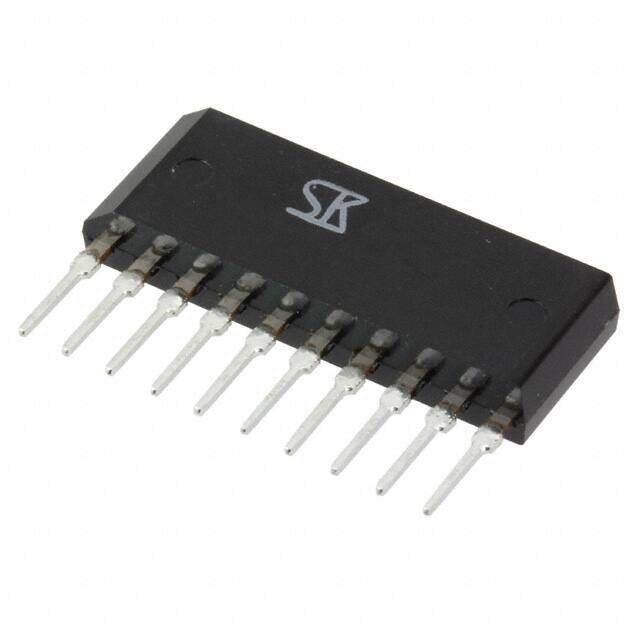

STA403A
RoHS
RoHS compliant
RoHS compliantPackage 10-SIP
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Description
TRANS 4NPN DARL 100V 4A SIP
PDF
/
Buying Options
Total Price: USD $2.03
Unit Price: USD $2.033
≥1 USD $2.033
≥10 USD $1.6682
≥100 USD $1.61595
≥500 USD $1.5637
≥1000 USD $1.51145
Inventory: 1147
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 36 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 10-SIP
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Bulk
Published 2001
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
ECCN Code EAR99
Additional Feature BUILT IN BIAS RESISTANCE RATIO IS 0.167
HTS Code 8541.29.00.95
Max Power Dissipation 4W
Terminal Position SINGLE
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 10
JESD-30 Code R-PSIP-T10
Qualification Status Not Qualified
Number of Elements 4
Configuration COMPLEX
Power - Max 4W
Polarity/Channel Type NPN
Transistor Type 4 NPN Darlington (Quad)
Collector Emitter Voltage (VCEO) 100V
Max Collector Current 4A
DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 2A 4V
Current - Collector Cutoff (Max) 100μA ICBO
Vce Saturation (Max) @ Ib, Ic 100V @ 10mA
Collector Emitter Breakdown Voltage 100V
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
