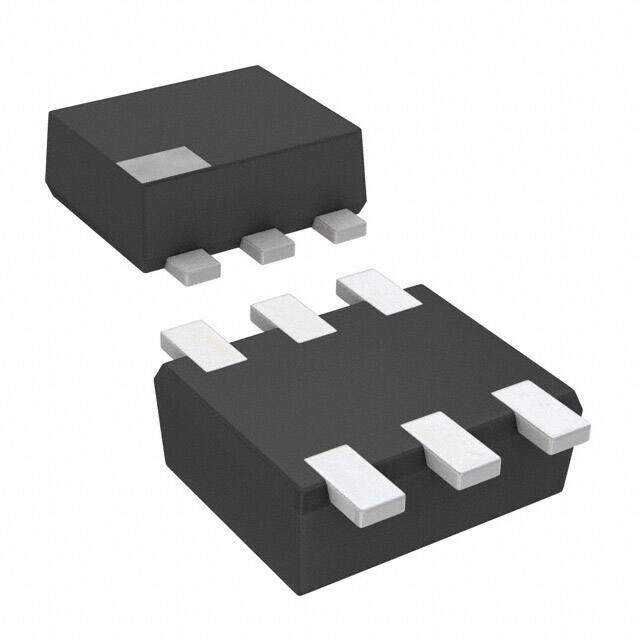

NP062AN00A
RoHS
/
Package SOT-963
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays, Pre-Biased
Description
TRANS PREBIAS DUAL NPN SSSMINI6
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.296702
≥1 USD $0.296702
≥200 USD $0.114827
≥500 USD $0.110782
≥1000 USD $0.1088
Inventory: 1148
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SOT-963
Supplier Device Package SSSMini6-F1
Technical
Packaging Tape & Reel (TR)
Published 2003
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Rated DC 50V
Max Power Dissipation 125mW
Current Rating 80mA
Base Part Number NP062AN
Power - Max 125mW
Transistor Type 2 NPN - Pre-Biased (Dual)
Collector Emitter Voltage (VCEO) 250mV
Max Collector Current 80mA
DC Current Gain (hFE) (Min) @ Ic, Vce 80 @ 5mA 10V
Current - Collector Cutoff (Max) 500nA
Vce Saturation (Max) @ Ib, Ic 250mV @ 300μA, 10mA
Collector Emitter Breakdown Voltage 50V
Voltage - Collector Emitter Breakdown (Max) 50V
Current - Collector (Ic) (Max) 80mA
Max Breakdown Voltage 50V
Frequency - Transition 150MHz
Resistor - Base (R1) 4.7kOhms
Resistor - Emitter Base (R2) 47kOhms
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
