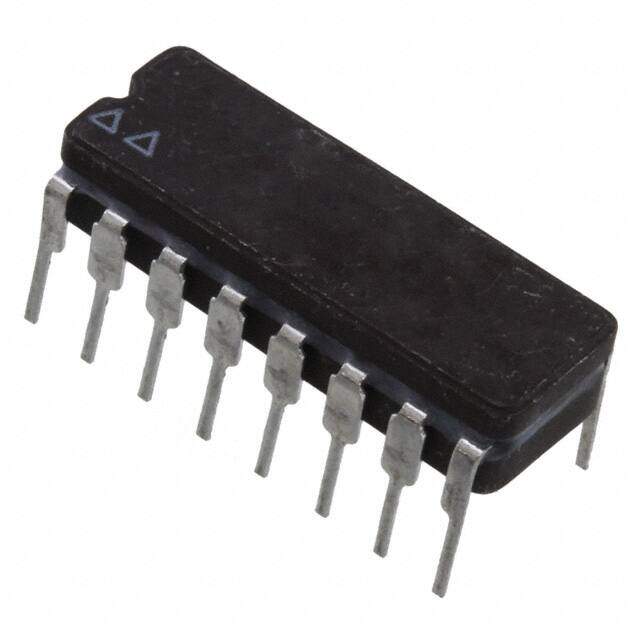

SG2003J-883B
RoHS
RoHS compliant
RoHS compliantPackage 16-CDIP (0.300, 7.62mm)
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Description
Trans Darlington NPN 50V 0.5A 16-Pin CDIP
PDF
/
Buying Options
Total Price: USD $37.59
Unit Price: USD $37.587966
≥1 USD $37.587966
≥10 USD $35.460341
≥100 USD $33.453157
≥500 USD $31.559574
≥1000 USD $29.773189
Inventory: 1400
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 16-CDIP (0.300, 7.62mm)
Number of Pins 16
Transistor Element Material SILICON
Technical
Operating Temperature 150°C TJ
Packaging Tube
Published 1997
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature HIGH RELIABILITY, LOGIC LEVEL COMPATIBLE
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Reach Compliance Code not_compliant
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 16
Reference Standard MIL-STD-883B
Qualification Status Not Qualified
Number of Elements 7
Polarity NPN
Transistor Application SWITCHING
Transistor Type 7 NPN Darlington
Collector Emitter Voltage (VCEO) 50V
Max Collector Current 500mA
DC Current Gain (hFE) (Min) @ Ic, Vce 1000 @ 350mA 2V
Vce Saturation (Max) @ Ib, Ic 1.6V @ 500μA, 350mA
Collector Emitter Breakdown Voltage 50V
Collector Emitter Saturation Voltage 1.6V
Compliance
Radiation Hardening Yes
RoHS Status RoHS Compliant
Lead Free Contains Lead
Alternative Model
