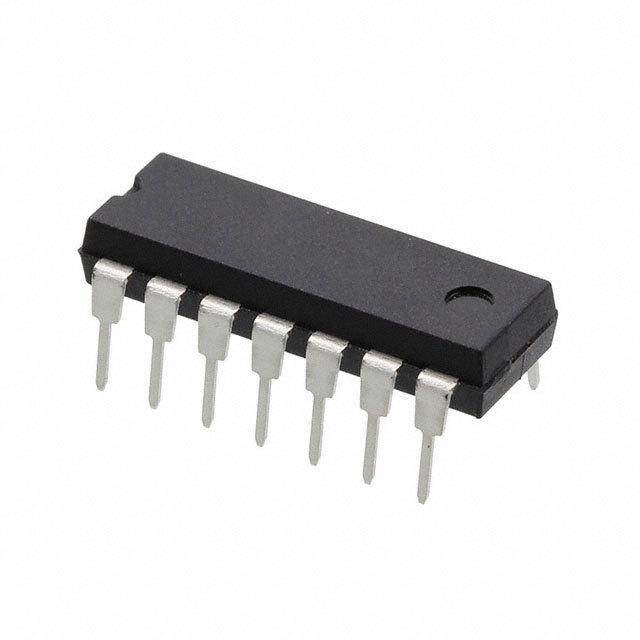

MPQ6002
RoHS
/
Package TO-116
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Description
PDF
/
Buying Options
Total Price: USD $10.73
Unit Price: USD $10.72835
≥1 USD $10.72835
≥10 USD $8.8027
≥100 USD $8.52815
≥500 USD $8.25265
≥1000 USD $7.97715
Inventory: 3036
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
DC Current Gain-Min (hFE) 30
hFE Min 30
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 60V
Frequency - Transition 200MHz
Collector Emitter Saturation Voltage 1.4V
Transition Frequency 200MHz
Collector Emitter Breakdown Voltage 30V
Max Collector Current 500mA
Collector Emitter Voltage (VCEO) 1.4V
Gain Bandwidth Product 200MHz
Transistor Application SWITCHING
Power Dissipation-Max 650mW
Configuration SEPARATE, 4 ELEMENTS
Polarity NPN, PNP
Number of Elements 4
Qualification Status Not Qualified
Pin Count 14
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
HTS Code 8541.29.00.75
Terminal Finish Tin/Lead (Sn/Pb)
ECCN Code EAR99
Number of Terminations 14
Part Status Active
Pbfree Code no
JESD-609 Code e0
Published 2001
Physical
Transistor Element Material SILICON
Number of Pins 14
Package / Case TO-116
Mount Through Hole
Supply Chain
Factory Lead Time 12 Weeks
