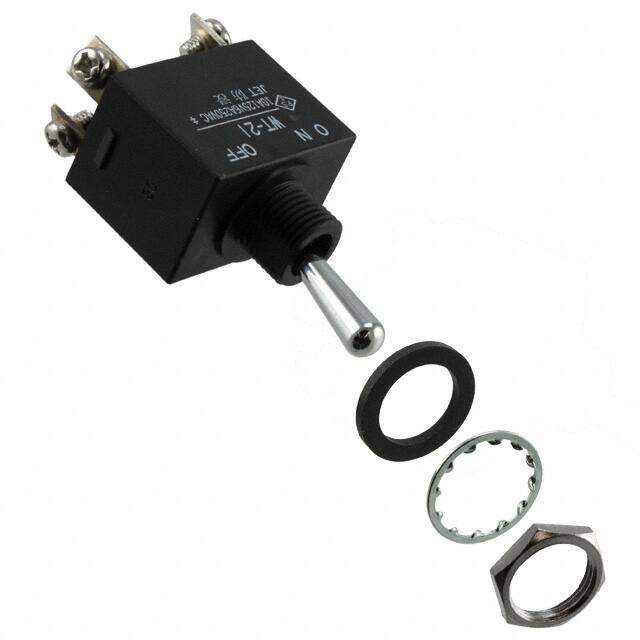

WT21T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPST 10A 125V
PDF
/
Buying Options
Total Price: USD $19.83
Unit Price: USD $19.8264
≥1 USD $19.8264
≥10 USD $18.00392
≥100 USD $17.194848
≥500 USD $16.2844
≥1000 USD $15.677552
≥3000 USD $14.66608
Inventory: 104
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Resin
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~70°C
Packaging Bulk
Published 2012
Series WT
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 10A AC/DC
Orientation Vertical
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 19.4mm
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Approval Agency CSA, UL
Actuator Type Standard Round
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 10A
Electrical Life 15,000 Cycles
Throw Configuration DPDT, DPST
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Contact Current Rating 10A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Dimensions
Length 28.8mm
Width 19.4mm
Actuator Length 17.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
