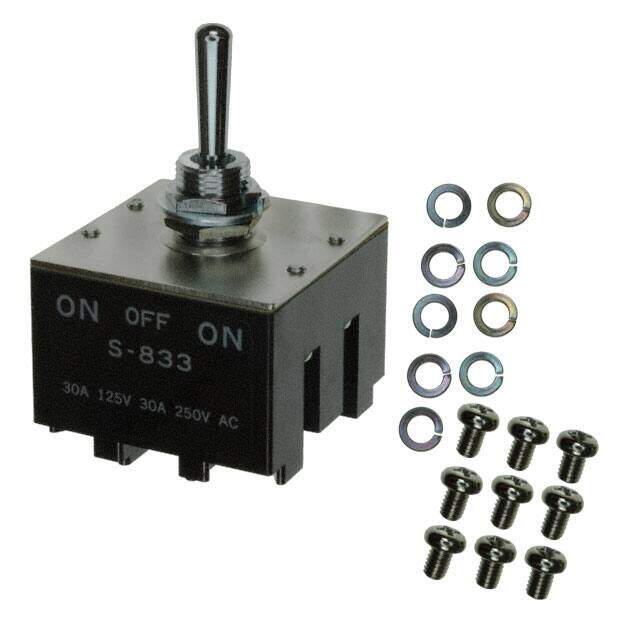

S833/U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE 3PDT 30A 125V
PDF
/
Buying Options
Total Price: USD $43.25
Unit Price: USD $43.252
≥1 USD $43.252
≥10 USD $39.36504
≥100 USD $37.534112
≥500 USD $35.016432
≥1000 USD $33.64328
≥3000 USD $31.354646
Inventory: 31
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mounting Type Panel Mount
Surface Mount NO
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2012
Series S
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated DC 30V
Current Rating (Amps) 30A AC/DC
Current Rating 30A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Body Length or Diameter 43.0022mm
Body Breadth 42.0116 mm
Actuator Type Standard Round
Circuit 3PDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Contact Voltage(DC)-Max 30V
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Contact Current Rating 30A
Illumination Type Illuminated
Bushing Thread M12 x 1
Contact (AC) Max Rating R Load 30A@250VAC
Contact Voltage(AC)-Max 250V
Bushing Length 0.472 inch
Bushing Type M12P1
Dimensions
Body Height 34.0106mm
Actuator Length 22.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
