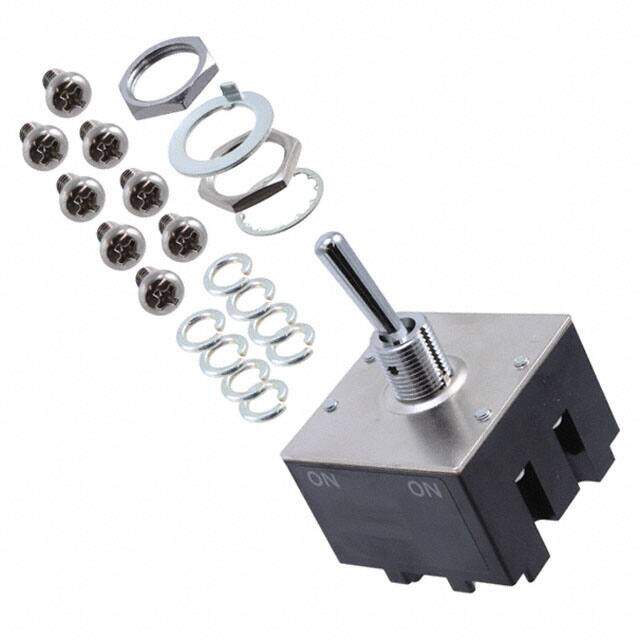

S832
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE 3PDT 30A 125V
PDF
/
Buying Options
Total Price: USD $42.47
Unit Price: USD $42.4688
≥1 USD $42.4688
≥10 USD $38.64608
≥100 USD $36.848768
≥500 USD $34.377376
≥1000 USD $33.029216
≥3000 USD $30.78233
Inventory: 619
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Series S
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
HTS Code 8536.50.90.65
Voltage - Rated DC 30V
Current Rating (Amps) 30A AC/DC
Orientation Vertical
Depth 43mm
Current Rating 30A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit 3PDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 250V
Max Current Rating 30A
Dielectric Withstanding Voltage 2000VAC V
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Contact Current Rating 30A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Contact (AC) Max Rating R Load 30A@250VAC
Contact Timing BREAK-BEFORE-MAKE
Contact (DC) Max Rating R Load 30A@30VDC
Bushing Type M12P1
Dimensions
Length 42mm
Body Height 34mm
Actuator Length 22.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
