S822
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

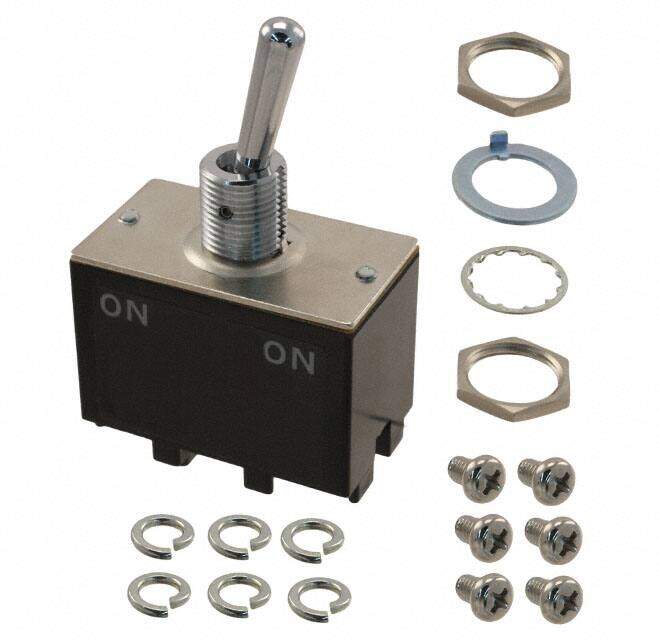

Switch Toggle ON None ON DPDT Round Lever Screw Lug 30A 250VAC 125VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $26.22
Unit Price: USD $26.2152
≥1 USD $26.2152
≥10 USD $23.81016
≥100 USD $22.739904
≥500 USD $21.536064
≥1000 USD $20.733504
≥3000 USD $19.395834
Inventory: 1083
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 22.00mm
Width 42mm
Length 42mm
Height 34mm
Technical
Contact (DC) Max Rating R Load 30A@30VDC
Contact Timing BREAK-BEFORE-MAKE
Bushing Thread M12 x 1
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 30A
Max Voltage Rating (DC) 125V
Illumination Non-Illuminated
Electrical Life 25,000 Cycles
Max Current Rating 30A
Max Voltage Rating (AC) 250V
Insulation Resistance 1GOhm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Standard Round
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 30A
Depth 24mm
Orientation Vertical
Current Rating (Amps) 30A AC/DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.65
Number of Positions 2
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series S
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Actuator Material Brass, Chrome Plated
Number of Pins 2
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
