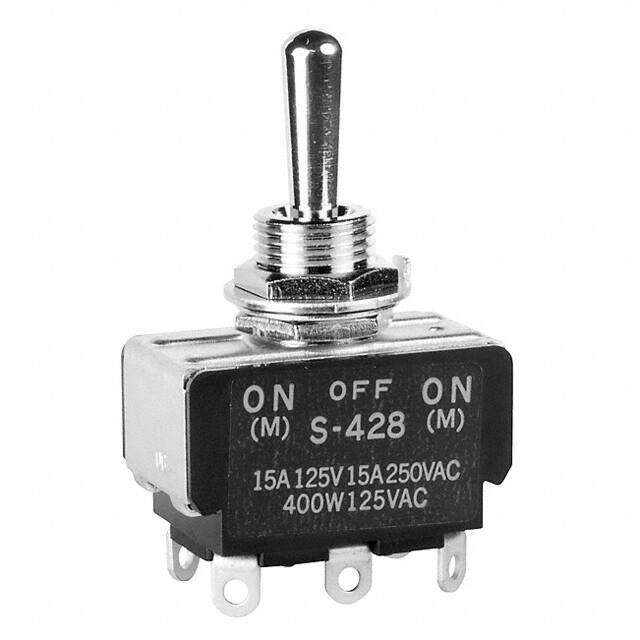

S428
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $18.3
Unit Price: USD $18.2952
≥1 USD $18.2952
≥10 USD $16.61176
≥100 USD $15.864992
≥500 USD $15.02512
≥1000 USD $14.465264
≥3000 USD $13.531971
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 17.50mm
Technical
Bushing Type M12P1
Contact (AC) Max Rating I Load 15A@250VAC
Life (Cycles) 15000 cycles
Bushing Length 0.472 inch
Contact Function (ON)-OFF-(ON)
Contact Voltage(AC)-Max 250V
Contact Timing BREAK-BEFORE-MAKE
Contact (AC) Max Rating R Load 15A@250VAC
Bushing Thread M12 x 1
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 15,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function Mom-Off-Mom
Circuit DPDT
Actuator Type Standard Round
Body Breadth 18.9992 mm
Body Length or Diameter 33.1978mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 15A
Current Rating (Amps) 15A AC
Terminal Finish Tin (Sn)
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series S400
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material PBT
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 15 Weeks
