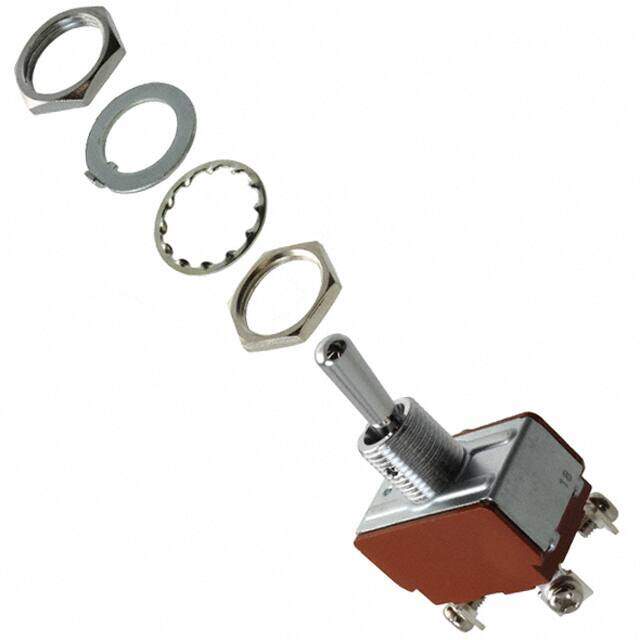

S331T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None OFF DPST Round Lever Screw Lug 15A 250VAC 30VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $7.69
Unit Price: USD $7.6912
≥1 USD $7.6912
≥10 USD $6.952
≥100 USD $6.617248
≥500 USD $6.545088
Inventory: 832
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 17.50mm
Length 33.2mm
Technical
Contact (DC) Max Rating R Load 15A@30VDC
Bushing Thread M12 x 1
Contact Current Rating 15A
Switch Type TOGGLE SWITCH
Max Voltage Rating (DC) 30V
Illumination Non-Illuminated
Electrical Life 15,000 Cycles
Max Current Rating 15A
Max Voltage Rating (AC) 250V
Insulation Resistance 1000000000Ohm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Off
Circuit DPST
Actuator Type Standard Round
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 20A
Orientation Vertical
Current Rating (Amps) 15A AC 20A DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.65
Additional Feature HIGH RATED
Terminal Finish Tin (Sn)
Number of Positions 2
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series S300
Published 2014
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Panel Mount
Mount Panel
Contact Plating Silver
Contact Material Brass, Silver
Supply Chain
Factory Lead Time 9 Weeks
