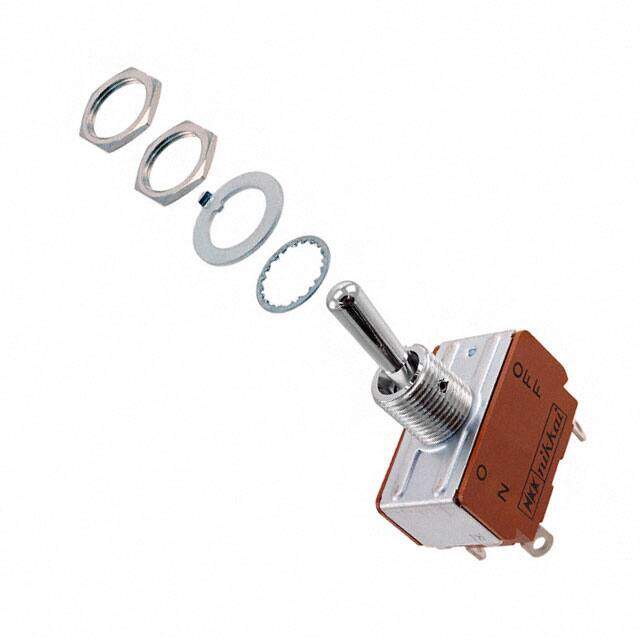

S331
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None OFF DPST Round Lever Solder Lug 25A 250VAC 30VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $37.89
Unit Price: USD $37.8928
≥1 USD $37.8928
≥10 USD $35.6664
≥100 USD $34.551
≥500 USD $33.43677
Inventory: 40
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Series S300
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 2
Terminal Finish Tin (Sn)
Additional Feature HIGH RATED
HTS Code 8536.50.90.65
Voltage - Rated DC 30V
Current Rating (Amps) 25A AC/DC
Orientation Vertical
Depth 19mm
Current Rating 25A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.50mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 250V
Max Current Rating 25A
Electrical Life 15,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Contact Current Rating 25A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Contact Timing BREAK-BEFORE-MAKE
Dimensions
Length 33.2mm
Body Height 19.4mm
Actuator Length 17.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
