S303
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

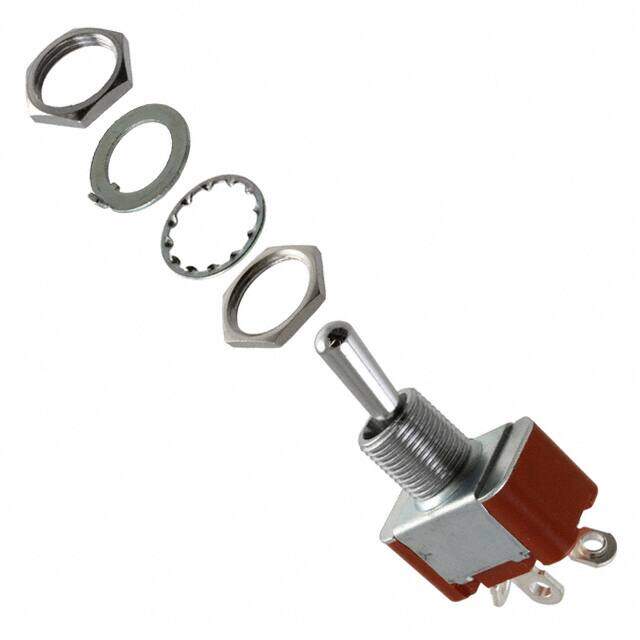

Switch Toggle ON OFF ON SPDT Round Lever Solder Lug 20A 250VAC 30VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $8.25
Unit Price: USD $8.2544
≥1 USD $8.2544
≥10 USD $7.43512
≥100 USD $7.124128
≥500 USD $6.773712
≥1000 USD $6.501176
≥3000 USD $6.111917
Inventory: 59
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 17.50mm
Width 28.5mm
Length 28.5mm
Height 17.4mm
Technical
Bushing Type M12P1
Contact (AC) Max Rating I Load 10A@125VAC
Contact (DC) Max Rating R Load 20A@30VDC
Contact Timing BREAK-BEFORE-MAKE
Contact (AC) Max Rating R Load 6A@250VAC
Contact Current(AC)-Max 6A
Bushing Thread M12 x 1
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 20A
Switch Type TOGGLE SWITCH
Max Voltage Rating (DC) 30V
Illumination Non-Illuminated
Electrical Life 25,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Max Current Rating 20A
Max Voltage Rating (AC) 250V
Insulation Resistance 1GOhm
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Off-On
Circuit SPDT
Actuator Type Standard Round
Body Breadth 16.002 mm
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 20A
Depth 16mm
Orientation Vertical
Current Rating (Amps) 15A AC 20A DC
Voltage - Rated DC 30V
HTS Code 8536.50.90.65
Additional Feature HIGH RATED
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series S300
Packaging Bulk
Operating Temperature -10°C~70°C
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Panel Mount
Mount Panel
Contact Material Silver
Supply Chain
Factory Lead Time 5 Weeks
