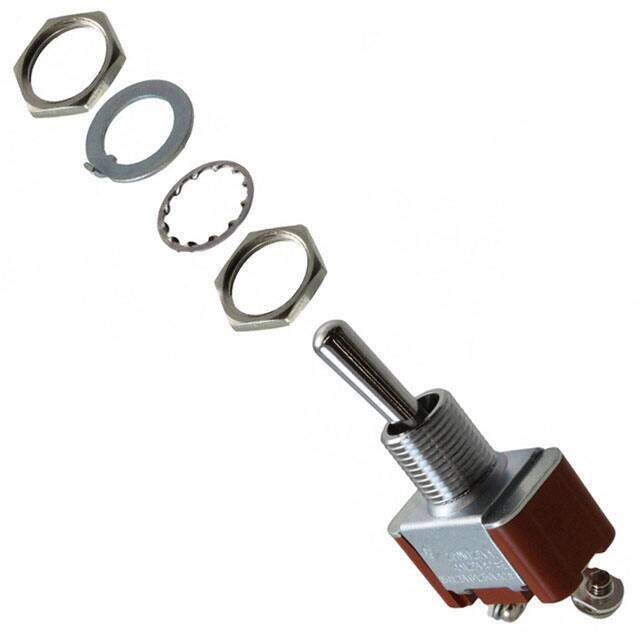

S301T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPST 15A 125V
PDF
/
Buying Options
Total Price: USD $9.23
Unit Price: USD $9.2312
≥1 USD $9.2312
≥10 USD $8.31864
≥100 USD $7.969984
≥500 USD $7.577856
≥1000 USD $7.273024
≥3000 USD $6.83753
Inventory: 1135
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Silver
Mount Bushing, Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2012
Series S300
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Number of Positions 2
Terminal Finish Tin (Sn)
Additional Feature HIGH RATED
HTS Code 8536.50.90.65
Voltage - Rated DC 30V
Current Rating (Amps) 15A AC 20A DC
Orientation Vertical
Depth 16mm
Current Rating 20A
Termination Style Screw Terminal
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit SPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 20A
Electrical Life 25,000 Cycles
Number of Poles 1
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Contact Current Rating 20A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Contact Current(AC)-Max 6A
Contact Timing BREAK-BEFORE-MAKE
Dimensions
Length 28.5mm
Actuator Length 17.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
