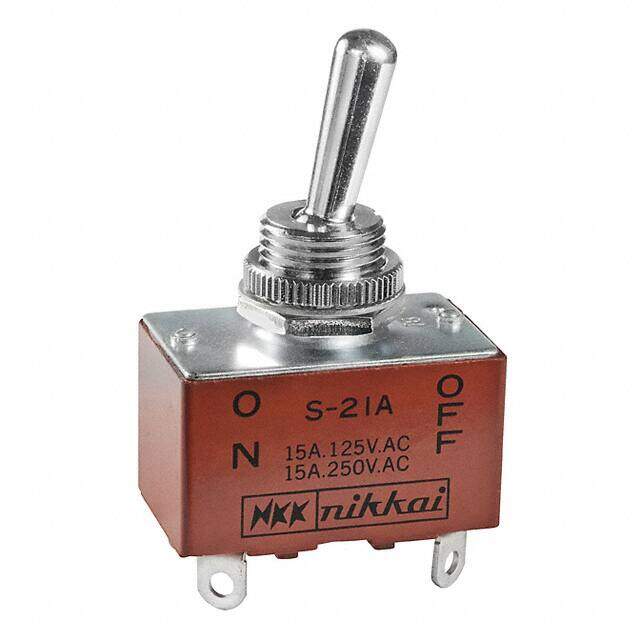

S21A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None OFF DPST Round Lever Solder Lug 15A 250VAC 30VDC Panel Mount with Threads
PDF
/
Buying Options
Total Price: USD $8.16
Unit Price: USD $8.1576
≥1 USD $8.1576
≥10 USD $7.35064
≥100 USD $7.042816
≥500 USD $6.696448
≥1000 USD $6.426992
≥3000 USD $6.04215
Inventory: 540
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2007
Series S
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 2
Voltage - Rated DC 30V
Current Rating (Amps) 15A AC 20A DC
Depth 18.6mm
Current Rating 20A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit DPST
Switch Function On-Off
Panel Cutout Dimensions Circular - 12.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 15A
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Contact Current Rating 15A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Dimensions
Length 31.2mm
Actuator Length 17.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
