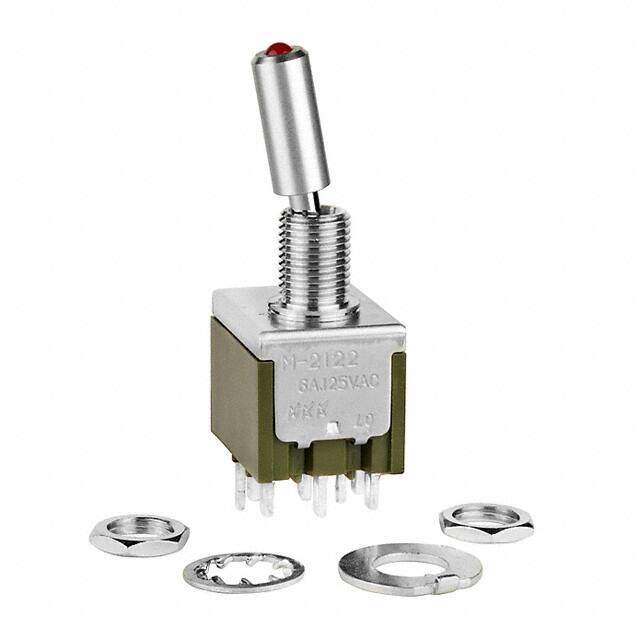

M2122LCW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $14.54
Unit Price: USD $14.54477
≥1 USD $14.54477
≥10 USD $13.721484
≥100 USD $12.944797
≥500 USD $12.212065
≥1000 USD $11.52082
Inventory: 1165
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2011
Series M2100
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Color Red
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Reach Compliance Code unknown
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Illumination Voltage (Nominal) 2.2VDC
Illumination Type, Color LED, Red
Electrical Life 25,000 Cycles
Illumination Illuminated
Illumination Type Illuminated, LED
Bushing Thread 1/4-40
Life (Cycles) 25000 cycles
Dimensions
Actuator Length 14.70mm
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
