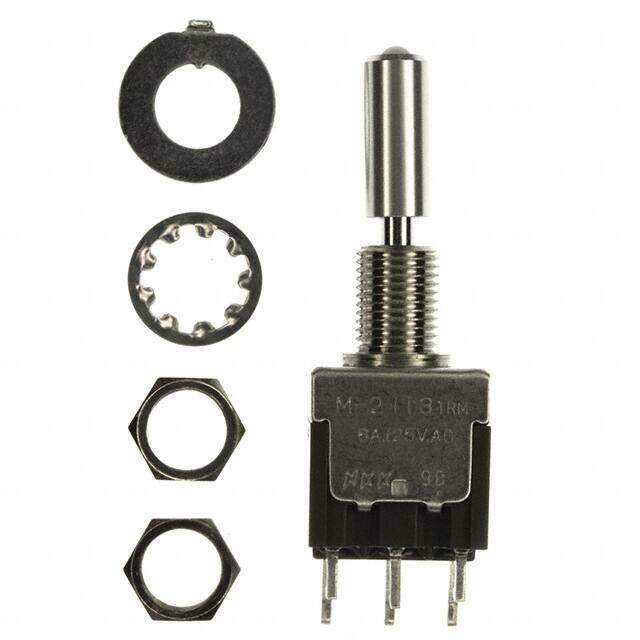

M2113TCFW01
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $41.07
Unit Price: USD $41.066199
≥1 USD $41.066199
≥200 USD $16.386305
≥500 USD $15.838826
≥1000 USD $15.568368
Inventory: 949
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 14.70mm
Width 12.7mm
Length 13mm
Height 43mm
Technical
Illumination Color Green, Red
Bushing Thread 1/4-40
Illumination Type Illuminated, LED
Contact Current Rating 6A
Max Voltage Rating (DC) 30V
Illumination Illuminated
Electrical Life 25,000 Cycles
Max Current Rating 6A
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Red/Green
Illumination Voltage (Nominal) 1.7 2VDC
Insulation Resistance 1GOhm
Contact Resistance 10mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Off-On
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 3A
Depth 12.7mm
Current Rating (Amps) 6A AC 3A DC
Voltage - Rated DC 30V
Color Green, Red
Number of Positions 3
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series M2100
Published 2005
Packaging Bulk
Operating Temperature -10°C~55°C
Physical
Housing Material Stainless Steel
Number of Pins 1
Package / Case 125
Mounting Type Panel Mount
Mount Bushing, Panel
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
