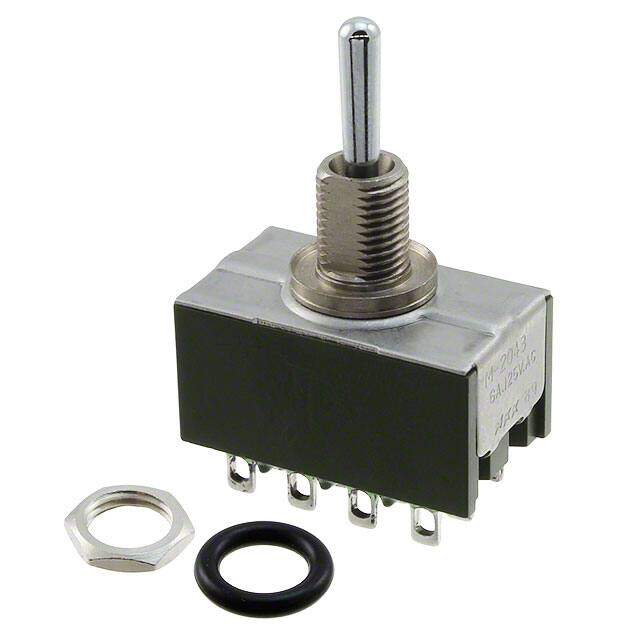

M2043SD3W01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE 4PDT 6A 125V
PDF
/
Buying Options
Total Price: USD $11.89
Unit Price: USD $11.8888
≥1 USD $11.8888
≥10 USD $10.73688
Inventory: 62
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Panel
Mounting Type Panel Mount
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material Brass, Chrome Plated
Center Contact Plating SILVER
Center Contact Material SILVER
Terminal Material COPPER ALLOY
End Contact Material SILVER
End Contact Plating SILVER
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series M
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Terminal Finish GOLD OVER NICKEL/SILVER
Additional Feature SPLASHPROOF BUSHING
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit 4PDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread 1/4-40
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Voltage(AC)-Max 250V
Solderability WAVE
Bushing Length 0.35 inch
Dimensions
Length - Termination 0.157 inch
Actuator Length 10.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
