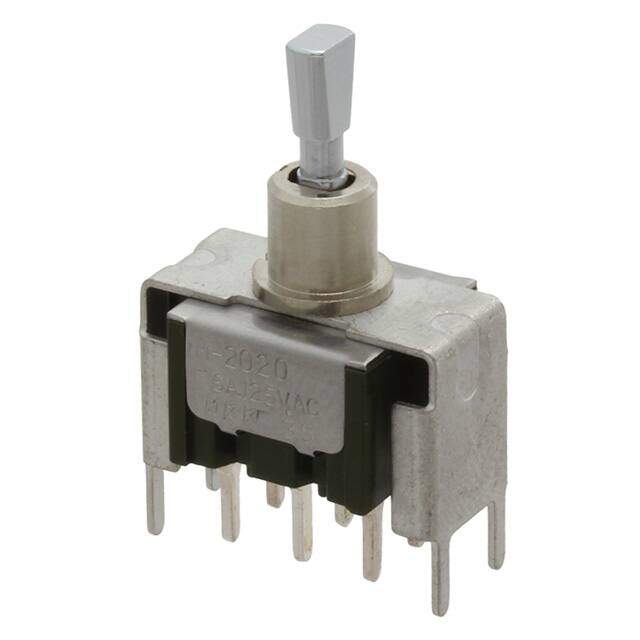

M2024E2A2W23
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SP3T 6A 125V
PDF
/
Inventory: 1432
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Series M
Feature Jumper needed to achieve triple throw
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Flatted
Circuit SP3T
Switch Function On-On-On
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread Unthreaded
Dimensions
Actuator Length 6.50mm
Compliance
RoHS Status ROHS3 Compliant
