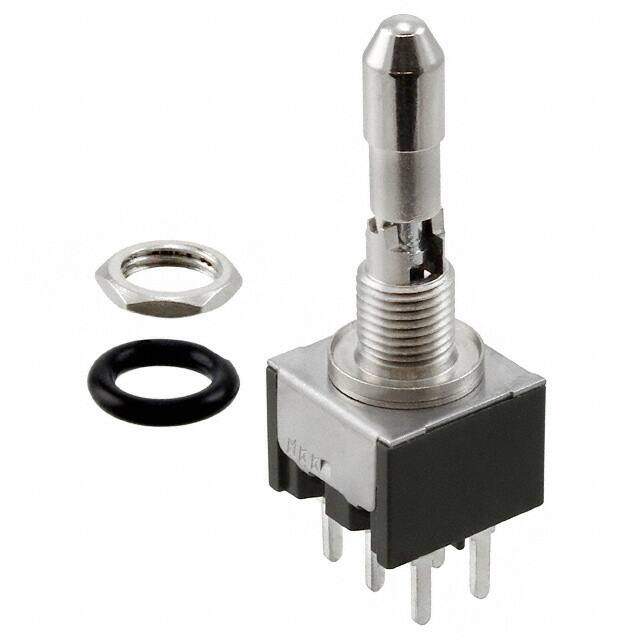

M2023LL3W03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Toggle Switches ON/OFF/ON LCKNG LVR HING SOLDER
PDF
/
Inventory: 1512
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series M
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Ingress Protection IP67 - Dust Tight, Waterproof
Depth 12.7mm
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Locking Lever
Circuit DPDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 6.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Bushing Thread 1/4-40
Dimensions
Length 13mm
Actuator Length 16.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
