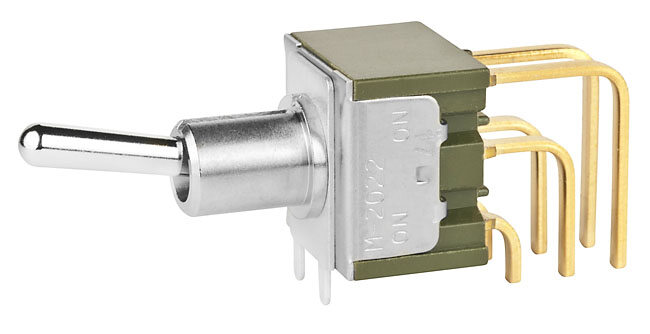

M2022SS2G40
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Switch Toggle ON None ON DPDT Small Bat Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
PDF
/
Inventory: 2214
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper
Contact Plating Gold
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2015
Series M
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Depth 40.32mm
Termination Style PC Pin
Voltage - Rated AC 28V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Insulation Resistance 1000000000Ohm
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Switch Type TOGGLE SWITCH
Bushing Thread Unthreaded
PCB Hole Count 8
Solderability WAVE
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Dimensions
Length 12.7mm
Actuator Length 10.50mm
Compliance
RoHS Status ROHS3 Compliant
