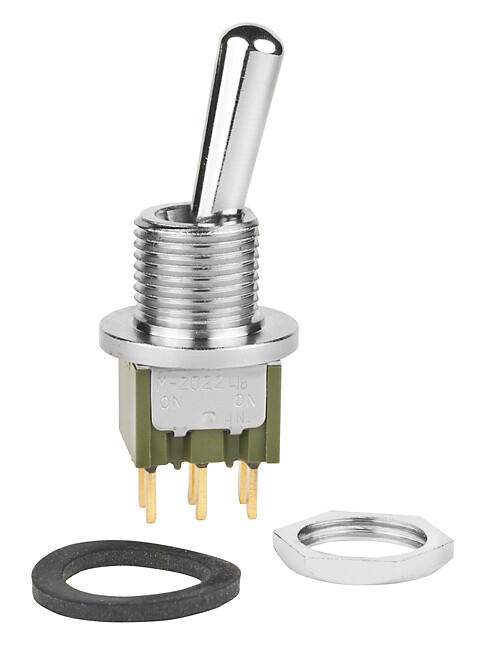

M2022B2B3G02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Toggle Switches DPDT On-On .689 12mm, QC Term
PDF
/
Inventory: 1399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style Quick Connect - 0.062 (1.5mm)
Voltage - Rated AC 28V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread M12 x 1
Power Rating 400mW
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series M
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Dimensions
Actuator Length 17.50mm
Compliance
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
Physical
Actuator Material Brass, Chrome Plated
Mounting Type Panel Mount
Mount Panel, Snap in
Contact Plating Gold
Supply Chain
Factory Lead Time 10 Weeks
