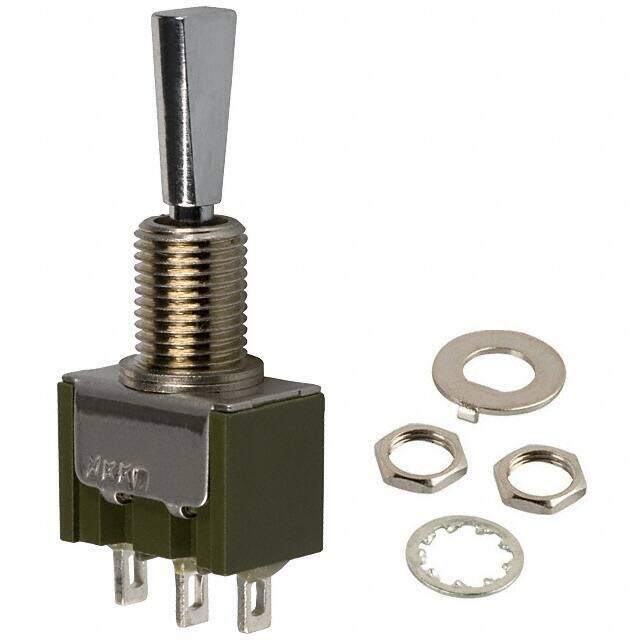

M2018ES1W01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $5.32
Unit Price: USD $5.324
≥1 USD $5.324
≥10 USD $4.79952
≥100 USD $4.559456
≥500 USD $4.367616
≥1000 USD $4.22356
≥3000 USD $4.00759
Inventory: 1087
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Bushing, Panel
Mounting Type Panel Mount
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material Brass, Chrome Plated
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2005
Series M
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Number of Positions 3
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Depth 8mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Flatted
Circuit SPDT
Switch Function Mom-Off-Mom
Panel Cutout Dimensions Circular - 6.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Number of Poles 1
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Contact Current Rating 6A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Contact Current(AC)-Max 3A
Contact Function (ON)-OFF-(ON)
Solderability WAVE
Dimensions
Length 13mm
Width 7.9mm
Actuator Length 11.40mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
