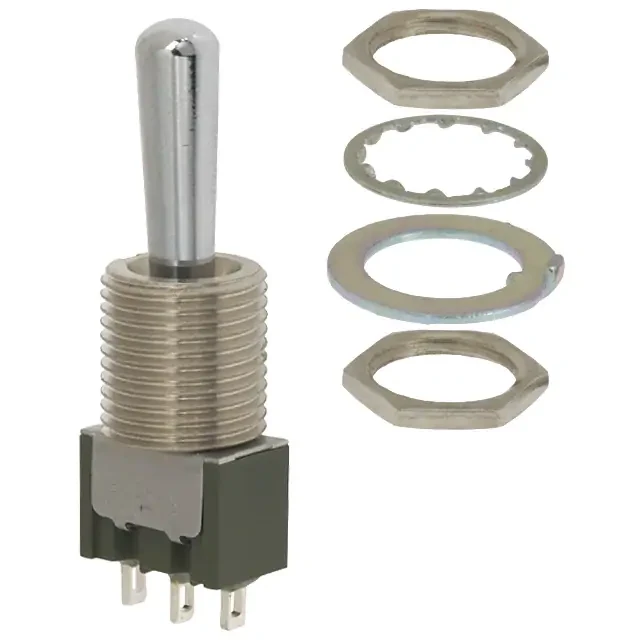

M2013B2B1W01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $7.06
Unit Price: USD $7.0576
≥1 USD $7.0576
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Number of Pins 1
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series M
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 3A DC
Orientation Vertical
Depth 12mm
Current Rating 3A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit SPDT
Switch Function On-Off-On
Panel Cutout Dimensions Circular - 12.50mm Dia
Max Voltage Rating (AC) 250V
Max Current Rating 6A
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 30V
Switch Type TOGGLE SWITCH
Contact Current Rating 6A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread M12 x 1
Dimensions
Length 13mm
Width 7.9mm
Actuator Length 17.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
