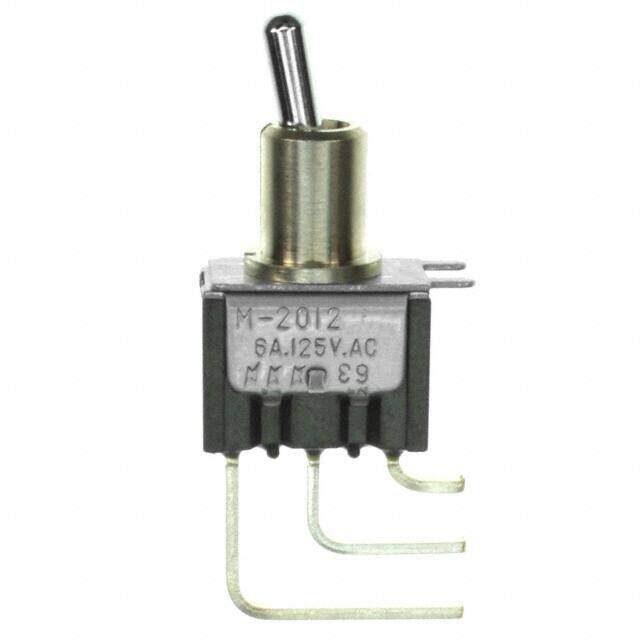

M2012S3S2W40
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $4.44
Unit Price: USD $4.4352
≥1 USD $4.4352
≥10 USD $3.95472
Inventory: 117
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Silver
Mount Through Hole, Vertical
Mounting Type Through Hole, Right Angle, Vertical
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Series M
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Voltage - Rated DC 30V
Current Rating (Amps) 6A AC 4A DC
Current Rating 4A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Electrical Life 25,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Contact Current Rating 6A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread Unthreaded
Dimensions
Actuator Length 6.50mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
