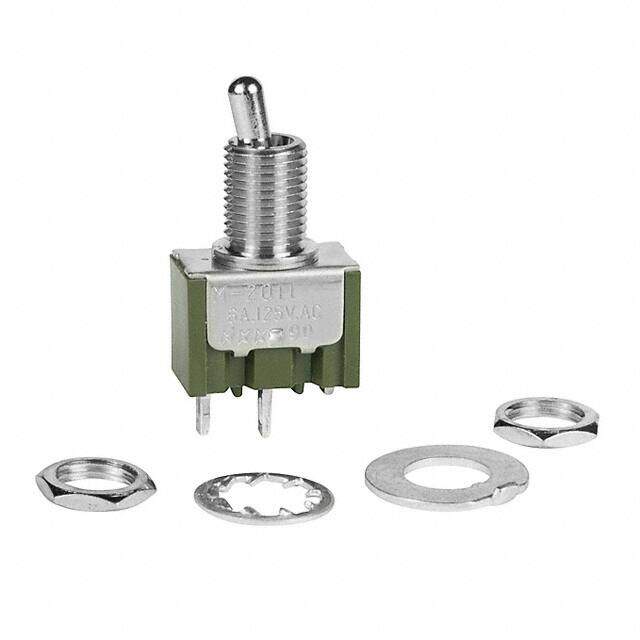

M2011S2S1W01
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPST 6A 125V
PDF
/
Buying Options
Total Price: USD $3.88
Unit Price: USD $3.8808
≥1 USD $3.8808
≥10 USD $3.45928
≥100 USD $3.275008
≥500 USD $3.158144
Inventory: 147
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 5.08mm
Technical
Bushing Thread 1/4-40
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 6A
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 25,000 Cycles
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Off
Circuit SPST
Actuator Type Standard Round
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 4A
Current Rating (Amps) 6A AC 4A DC
Voltage - Rated DC 30V
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series M
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Package / Case 125
Mounting Type Panel Mount
Mount Panel
Supply Chain
Factory Lead Time 9 Weeks
