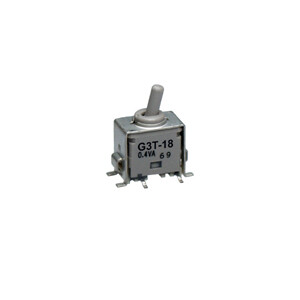

G3T18AB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Toggle Switches SPDT (ON) OFF (ON)
PDF
/
Inventory: 5606
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.81mm
Body Height 12.9032mm
Length 11mm
Technical
Solderability WAVE
Contact Function (ON)-OFF-(ON)
PCB Hole Count 9
Bushing Thread Unthreaded
Switch Type TOGGLE SWITCH
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Sealing EPOXY
Insulation Resistance 500000000Ohm
Contact Resistance 0.08mOhm
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Body Breadth 5.0038 mm
Voltage - Rated AC 28V
Termination Style Gull Wing
Current Rating 100mA
Depth 7.6mm
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Additional Feature MOUNTING BRACKET
Termination Gull Wing
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series G3T
Published 2012
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyphenylene Sulfide (PPS)
Housing Material Resin
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 13 Weeks
