G23AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

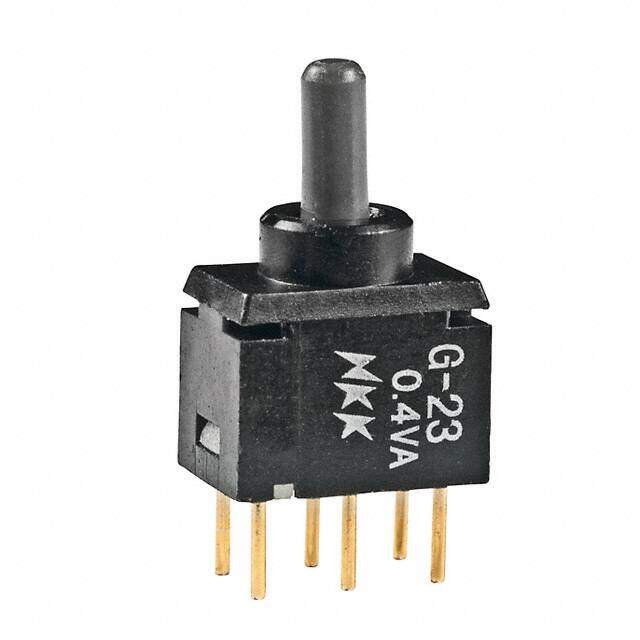

Toggle Switches ON-OFF-ON DPDT
PDF
/
Buying Options
Total Price: USD $6.12
Unit Price: USD $6.1248
≥1 USD $6.1248
≥10 USD $5.51848
≥100 USD $5.240928
≥500 USD $5.0193
≥1000 USD $4.852874
≥3000 USD $4.60328
Inventory: 1133
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.80mm
Length 7mm
Height 7mm
Technical
PCB Hole Count 6
Bushing Thread Unthreaded
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 100mA
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Insulation Resistance 500MOhm
Contact Resistance 0.08mOhm
Switch Function On-Off-On
Circuit DPDT
Actuator Type Standard Round
Body Breadth 4.4958 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 100mA
Depth 4.5mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series G
Published 2015
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Terminal Material PHOSPHOR BRONZE
Actuator Material Polyamide (PA), Nylon, Glass Filled
Housing Material Polyamide
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Gold
Contact Material Bronze, Gold
