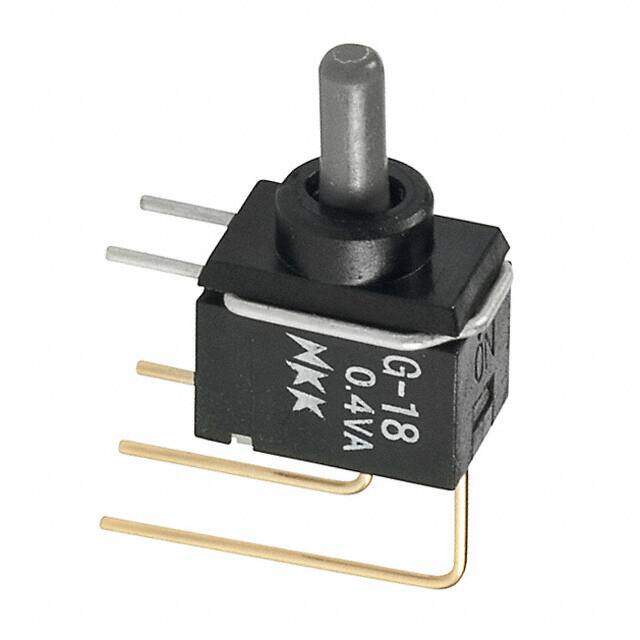

G18AV
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.61
Unit Price: USD $5.6056
≥1 USD $5.6056
≥10 USD $5.04856
≥100 USD $4.796
≥500 USD $4.59404
≥1000 USD $4.442574
≥3000 USD $4.215394
Inventory: 147
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 3.80mm
Body Height 16.764mm
Length 5.3mm
Technical
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Solderability WAVE
Contact Function (ON)-OFF-(ON)
PCB Hole Count 5
Bushing Thread Unthreaded
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 100mA
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Sealing EPOXY
Insulation Resistance 500000000Ohm
Contact Resistance 0.08mOhm
Switch Function Mom-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Body Breadth 4.4958 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 16.76mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
JESD-609 Code e4
Series G
Published 2015
Packaging Tray
Operating Temperature -25°C~85°C
Physical
Actuator Material Polyamide (PA), Nylon, Glass Filled
Housing Material Polyamide
Mounting Type Through Hole, Right Angle, Vertical
Mount Through Hole, Vertical
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 16 Weeks
