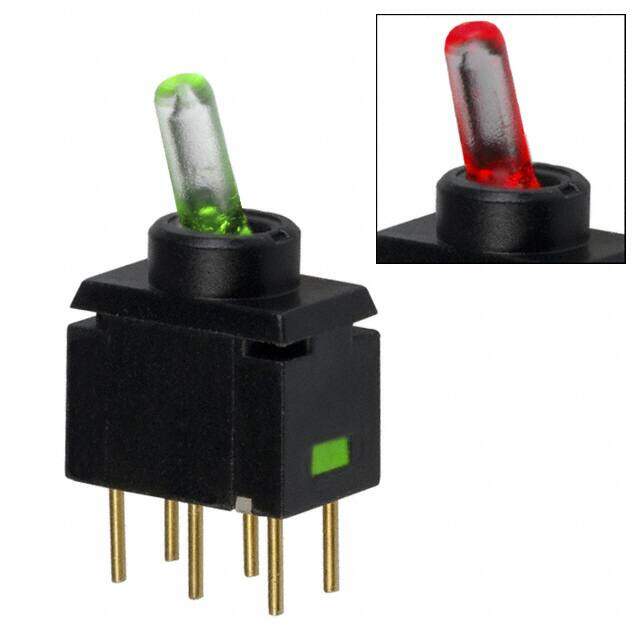

G12JPCF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $7.2
Unit Price: USD $7.1984
≥1 USD $7.1984
≥10 USD $6.46448
≥100 USD $5.669048
≥500 USD $4.740771
Inventory: 468
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Bronze, Gold
Contact Plating Gold
Mount PCB, Through Hole
Mounting Type Through Hole
Number of Pins 1
Housing Material Polyamide
Actuator Material Polyamide (PA), Nylon, Glass Filled
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2005
Series G
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Vertical
Depth 4.5mm
Current Rating 100mA
Termination Style PC Pin
Voltage - Rated AC 28V
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Contact Resistance 80mOhm
Insulation Resistance 500MOhm
Illumination Voltage (Nominal) 2.0 2.1VDC
Illumination Type, Color LED, Red/Green
Sealing EPOXY TERMINAL SEALED
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 100,000 Cycles
Illumination Illuminated
Max Voltage Rating (DC) 28V
Contact Current Rating 100mA
Illumination Type Illuminated, LED
Bushing Thread Unthreaded
Illumination Color Green, Red
Switching Voltage 28V
PCB Hole Count 6
Solderability WAVE
Washability SOLVENT
Dimensions
Height 13.4mm
Length 7mm
Width 4.5mm
Actuator Length 3.80mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
