D22022H
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

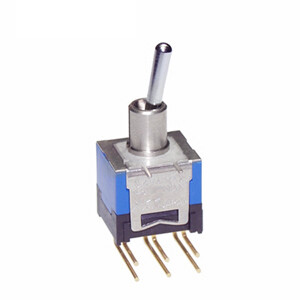

SWITCH TOGGLE DPDT 0.4VA 48V
PDF
/
Inventory: 3273
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole, Right Angle
Insulation Material GLASS FILLED POLYAMIDE
Housing Material POLYBUTYLENE TEREPHTHALATE
Actuator Material Brass, Chrome Plated
Center Contact Plating GOLD
Center Contact Material PHOSPHOR BRONZE
End Contact Plating GOLD
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Published 2015
Series D2
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Terminal Finish GOLD
Voltage - Rated DC 48V
Current Rating (Amps) 0.4VA AC/DC
Termination Style PC Pin
Voltage - Rated AC 48V
Body Length or Diameter 14.7066mm
Body Breadth 12.7 mm
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Contact Resistance 0.05mOhm
Insulation Resistance 1000000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread Unthreaded
Contact Timing BREAK-BEFORE-MAKE
PCB Hole Count 8
Bushing Length 0.303 inch
Contact (AC) Max Power Rating R Load 0.4VA@48VAC
Dimensions
Body Height 17.78mm
Length - Termination 0.138 inch
Actuator Length 10.50mm
Compliance
RoHS Status ROHS3 Compliant
Alternative Model
