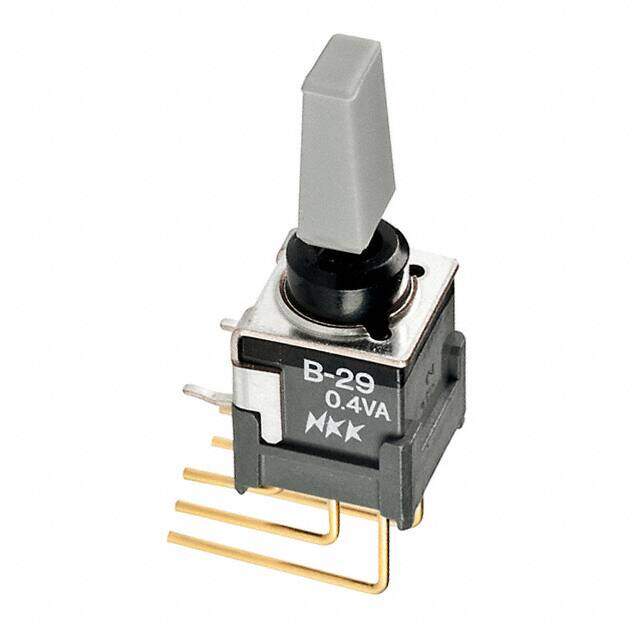

B29KV-AH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $7.43
Unit Price: USD $7.4272
≥1 USD $7.4272
≥10 USD $6.67304
≥100 USD $6.364864
≥500 USD $6.09092
≥1000 USD $5.851454
≥3000 USD $5.543463
Inventory: 31
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 9.40mm
Length - Termination 0.161 inch
Body Height 29.5656mm
Technical
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Length 0.106 inch
Solderability WAVE
Contact Function ON-OFF-(ON)
PCB Hole Count 8
Bushing Thread Unthreaded
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Sealing EPOXY
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Off-Mom
Circuit DPDT
Actuator Type Snap On Paddle
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Gray Actuator
JESD-609 Code e4
Series B
Published 2010
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Plating GOLD OVER NICKEL
Center Contact Plating GOLD OVER SILVER
Actuator Material Polyamide (PA), Nylon
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole, Right Angle, Vertical
Mount Through Hole, Vertical
Supply Chain
Factory Lead Time 10 Weeks
