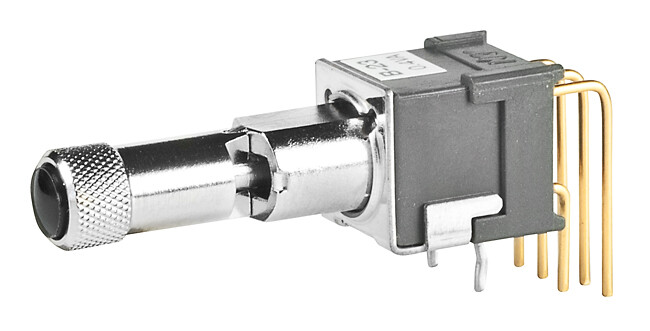

B23LH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Toggle Switches Series B, Process Sealed, Antistatic
PDF
/
Inventory: 3827
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 12.50mm
Length - Termination 0.142 inch
Body Height 35.1028mm
Technical
Washability SOLVENT
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Length 0.106 inch
Solderability WAVE
PCB Hole Count 8
Bushing Thread Unthreaded
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Off-On
Circuit DPDT
Actuator Type Locking Lever
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series B
Published 2010
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Nickel Plated
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 10 Weeks
