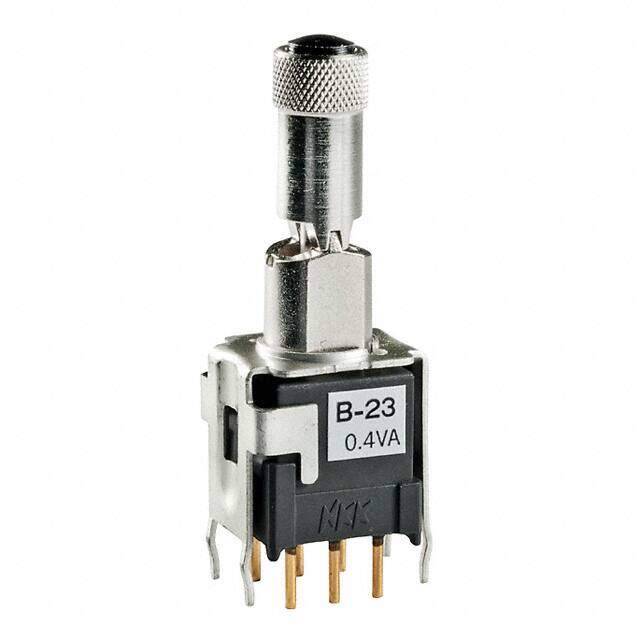

B23LB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $5.56
Unit Price: USD $5.5616
≥1 USD $5.5616
≥10 USD $4.99488
≥100 USD $4.764672
≥500 USD $4.55972
≥1000 USD $4.51
Inventory: 1131
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 12.50mm
Length - Termination 0.122 inch
Body Height 34.5948mm
Technical
Contact (DC) Max Power Rating R Load 0.4VA@28VDC
Bushing Length 0.217 inch
PCB Hole Count 10
Bushing Thread Unthreaded
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Off-On
Circuit DPDT
Actuator Type Locking Lever
Body Breadth 8.7884 mm
Body Length or Diameter 8.7884mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 400mA
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series B
Published 2006
Packaging Tray
Operating Temperature -30°C~85°C
Physical
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Actuator Material Brass, Nickel Plated
Insulation Material GLASS FILLED POLYAMIDE
Mounting Type Through Hole
Mount PCB, Through Hole
Contact Plating Nickel
Supply Chain
Factory Lead Time 10 Weeks
