B13AH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

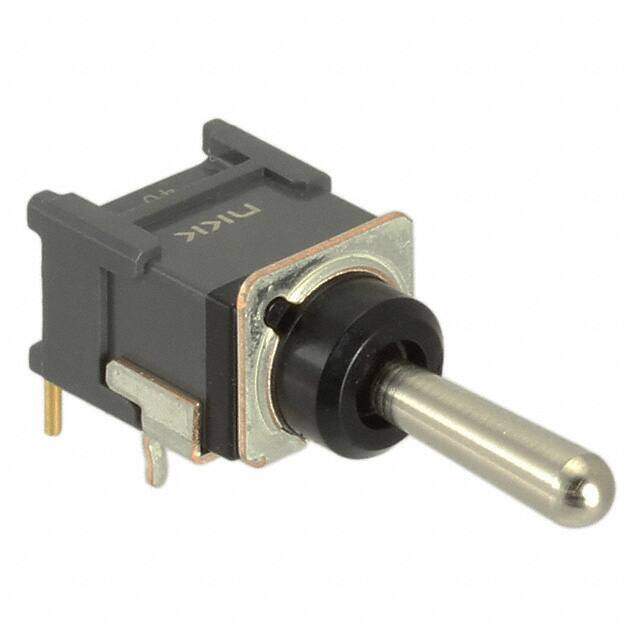

TOGGLE SWITCH, SPDT, R/A, ON-OFF-ON
PDF
/
Buying Options
Total Price: USD $4.48
Unit Price: USD $4.4792
≥1 USD $4.4792
≥10 USD $3.99168
≥100 USD $3.778368
≥500 USD $3.64276
≥1000 USD $3.4683
≥3000 USD $3.313279
Inventory: 153
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 5 Weeks
Physical
Contact Material Bronze, Gold
Contact Plating Gold
Mount PCB, Panel, Through Hole
Mounting Type Through Hole, Right Angle
Housing Material Polyamide
Actuator Material Brass, Nickel Plated
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2010
Series B
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Color Black
HTS Code 8536.50.90.65
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Orientation Right Angle
Depth 24.2mm
Current Rating 100mA
Termination Style PC Pin
Voltage - Rated AC 28V
Body Breadth 7.2898 mm
Actuator Type Standard Round
Circuit SPDT
Switch Function On-Off-On
Contact Resistance 50mOhm
Insulation Resistance 500MOhm
Max Voltage Rating (AC) 28V
Max Current Rating 100mA
Dielectric Withstanding Voltage 500VAC V
Electrical Life 50,000 Cycles
Number of Poles 1
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Switch Type TOGGLE SWITCH
Contact Current Rating 100mA
Bushing Thread Unthreaded
PCB Hole Count 5
Life (Cycles) 50000 cycles
Dimensions
Height 7.3mm
Length 8.8mm
Width 8.8mm
Actuator Length 10.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Contains Lead
