A25AP
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

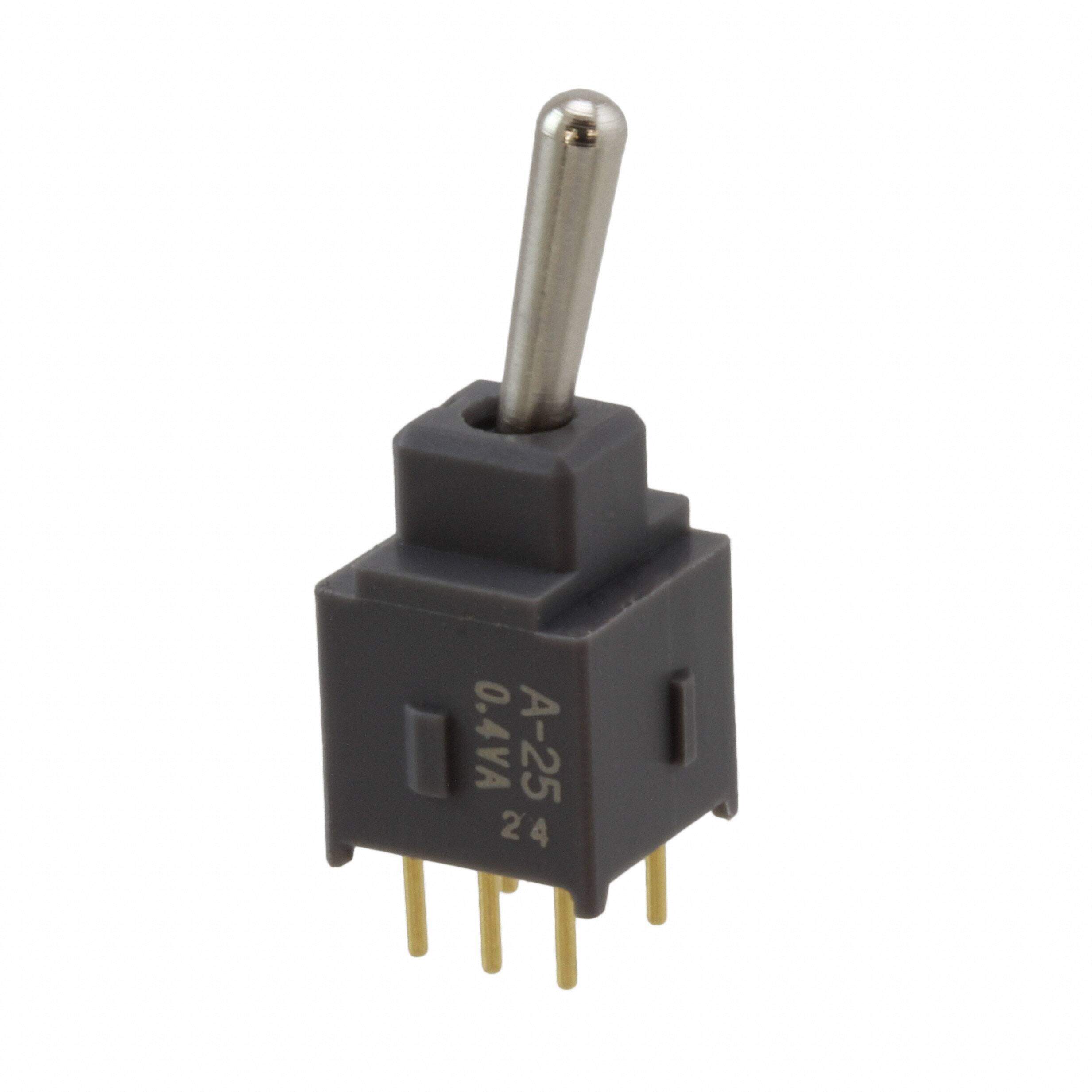

NKK SWITCHES A25AP Toggle Switch, Non Illuminated, DPDT, On-(On), Through Hole, 100 mA
PDF
/
Buying Options
Total Price: USD $5.77
Unit Price: USD $5.7728
≥1 USD $5.7728
≥10 USD $5.19992
≥100 USD $4.93856
≥500 USD $4.729648
≥1000 USD $4.572832
≥3000 USD $4.337696
Inventory: 138
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole
Actuator Material Brass, Nickel Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2005
Series A
Feature Process Sealed
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code unknown
Current Rating 100mA
Termination Style PC Pin
Voltage - Rated AC 28V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-Mom
Insulation Resistance 500MOhm
Electrical Life 50,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Type Illuminated, Non-Illuminated
Bushing Thread Unthreaded, Square
Dimensions
Height 8.5mm
Actuator Length 10.00mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
