A19AP
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Switches / Toggle Switches
Description

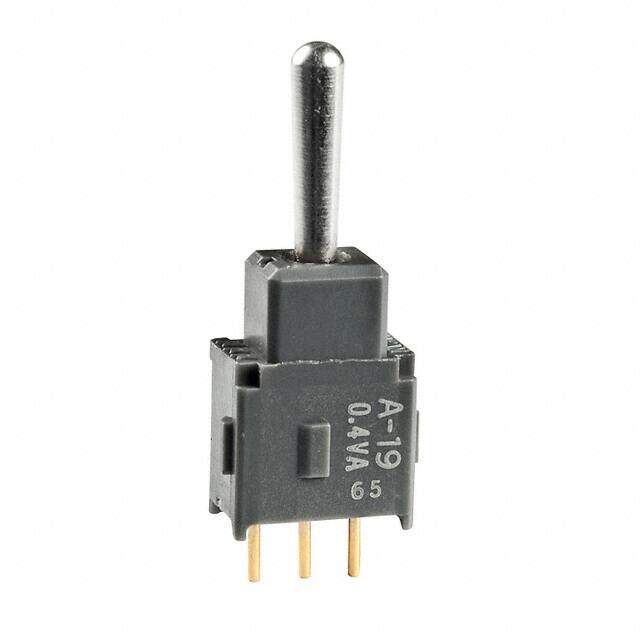

NKK SWITCHES A19AP Toggle Switch, Non Illuminated, SPDT, On-Off-(On), Panel, 100 mA
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $4.4308
≥100 USD $4.19408
≥500 USD $4.0436
≥1000 USD $3.850088
≥3000 USD $3.678048
Inventory: 248
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 10.00mm
Height 8.5mm
Technical
Bushing Thread Unthreaded, Square
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 100mA
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Insulation Resistance 500MOhm
Switch Function On-Off-Mom
Circuit SPDT
Actuator Type Standard Round
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 100mA
Reach Compliance Code unknown
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Process Sealed
Series A
Published 2005
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Nickel Plated
Package / Case 100
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 13 Weeks
