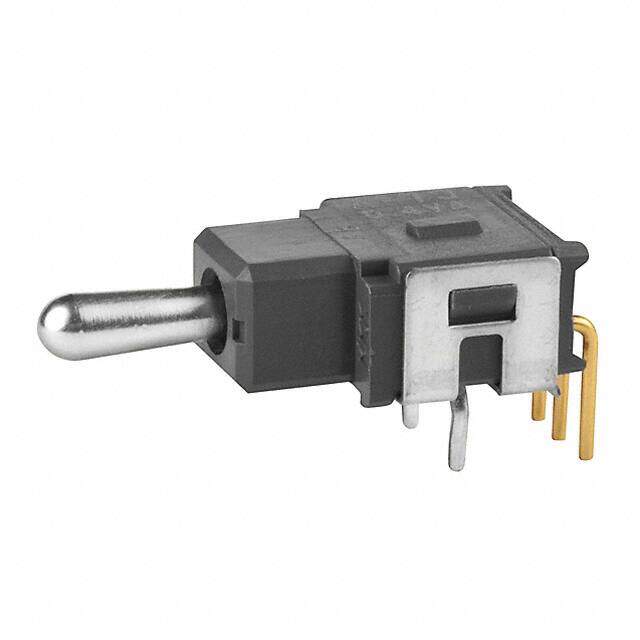

A13JH image
Favorite
A13JH image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $4.97
Unit Price: USD $4.972
≥1 USD $4.972
≥10 USD $4.4792
≥100 USD $4.25568
≥500 USD $4.07638
≥1000 USD $3.94196
≥3000 USD $3.740422
Inventory: 91
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 6.30mm
Body Height 13.8684mm
Length 9.8mm

Technical

PCB Hole Count 5
Bushing Thread Unthreaded, Square
Switch Type TOGGLE SWITCH
Max Voltage Rating (DC) 28V
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Sealing MOLDED
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Switch Function On-Off-On
Circuit SPDT
Actuator Type Standard Round
Body Breadth 5.0038 mm
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 20.48mm
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Process Sealed
JESD-609 Code e4
Series A
Published 2015
Packaging Tray
Operating Temperature -30°C~85°C

Physical

Actuator Material Brass, Nickel Plated
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Bronze

Supply Chain

Factory Lead Time 12 Weeks
