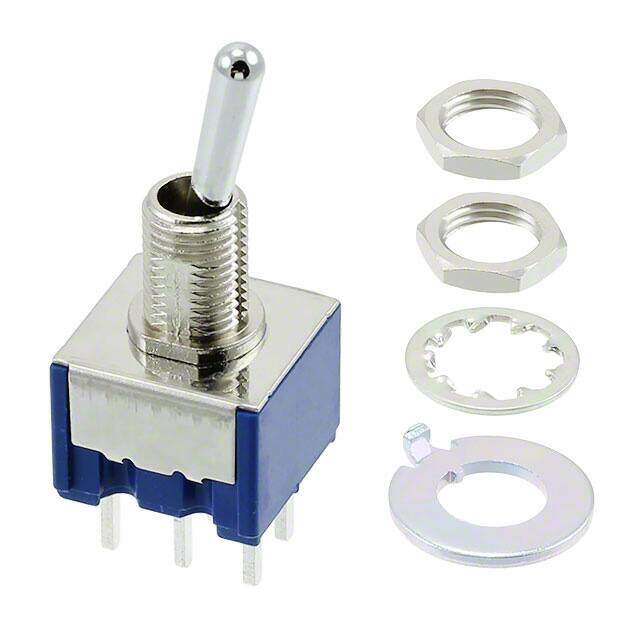

8A2012-Z
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $6.36
Unit Price: USD $6.3624
≥1 USD $6.3624
≥10 USD $5.73056
≥100 USD $5.442624
≥500 USD $5.21224
≥1000 USD $5.039496
≥3000 USD $4.780336
Inventory: 91
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 10.50mm
Length - Termination 0.15 inch
Body Height 8.9916mm
Technical
Bushing Length 0.315 inch
Bushing Thread 1/4-40
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 50,000 Cycles
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Standard Round
Body Breadth 13.0048 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 4A
Reach Compliance Code unknown
Current Rating (Amps) 6A AC 4A DC
Voltage - Rated DC 30V
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Sealed - Flux Protection
Series 8A
Published 2016
Packaging Bulk
Operating Temperature -20°C~85°C
Physical
Mounting Type Panel Mount
Mount Panel
Supply Chain
Factory Lead Time 9 Weeks
