34DWMSP15B4M6RT
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description

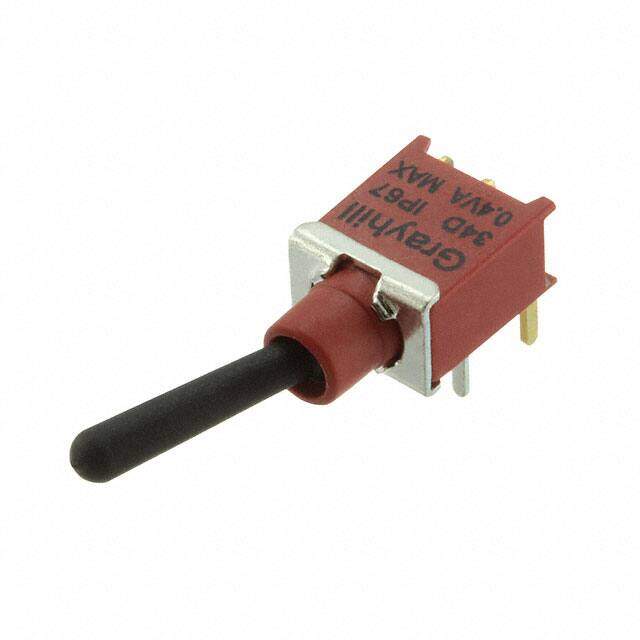

GRAYHILL 34DWMSP15B4M6RT SWITCH, TOGGLE, SPDT, 20VAC
PDF
/
Buying Options
Total Price: USD $4.27
Unit Price: USD $4.268
≥1 USD $4.268
≥10 USD $3.84208
≥100 USD $3.648832
≥500 USD $3.49448
≥1000 USD $3.399
Inventory: 385
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 10.70mm
Body Height 5.08mm
Technical
Contact (DC) Max Rating R Load .02A@20VDC
Contact (AC) Max Rating R Load .02A@20VAC
Contact Current(AC)-Max 0.02A
Bushing Thread Unthreaded
Illumination Type Illuminated, Non-Illuminated
Contact Current Rating 3A
Switch Type TOGGLE SWITCH
Max Voltage Rating (DC) 20V
Illumination Non-Illuminated
Electrical Life 30,000 Cycles
Max Voltage Rating (AC) 20V
Sealing EPOXY TERMINAL SEALED; IP67
Contact Current(DC)-Max 0.02A
Contact Resistance 20mOhm
Switch Function On-On
Circuit SPDT
Actuator Type Standard Round
Body Breadth 8.13 mm
Body Length or Diameter 9.27mm
Voltage - Rated AC 20V
Termination Style PC Pin
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Right Angle
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
HTS Code 8536.50.90.65
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series 34D
Published 2010
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Brass, Chrome Plated
Housing Material Stainless Steel
Mounting Type Through Hole, Right Angle
Mount Brackets, PCB, Through Hole
Contact Material Gold
Supply Chain
Factory Lead Time 18 Weeks
