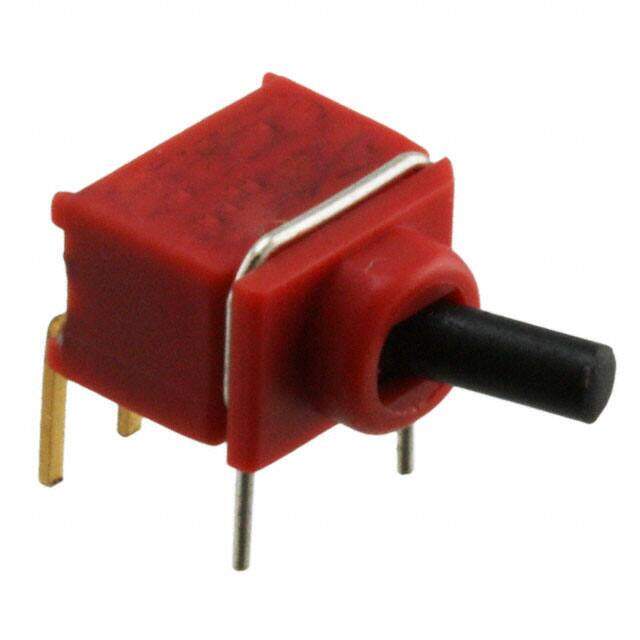

200USP1T1A1M6RE image
Favorite
200USP1T1A1M6RE image
Favorite

200USP1T1A1M6RE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $3.32
Unit Price: USD $3.3176
≥1 USD $3.3176
≥10 USD $2.97176
≥100 USD $2.81952
≥500 USD $2.68129
≥1000 USD $2.556875
≥3000 USD $2.446294
Inventory: 4900
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 9 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole, Right Angle
Center Contact Plating GOLD
Center Contact Material COPPER ALLOY
End Contact Material COPPER ALLOY
End Contact Plating GOLD

Technical

Operating Temperature -30°C~85°C
Packaging Bulk
Published 2010
Series 200U
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
HTS Code 8536.50.90.65
Power Rating 400mW
Voltage - Rated DC 20V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP67 - Dust Tight, Waterproof
Termination Style PC Pin
Voltage - Rated AC 20V
Body Length or Diameter 7.0104mm
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Contact Resistance 0.1mOhm
Insulation Resistance 500000000Ohm
Dielectric Withstanding Voltage 700VAC V
Electrical Life 40,000 Cycles
Throw Configuration SPDT, SPST
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Type Illuminated, Non-Illuminated
Bushing Thread Unthreaded
PCB Hole Count 5

Dimensions

Body Height 6.0706mm
Length - Termination 0.126 inch
Actuator Length 3.80mm

Compliance

RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP67, Waterproof
