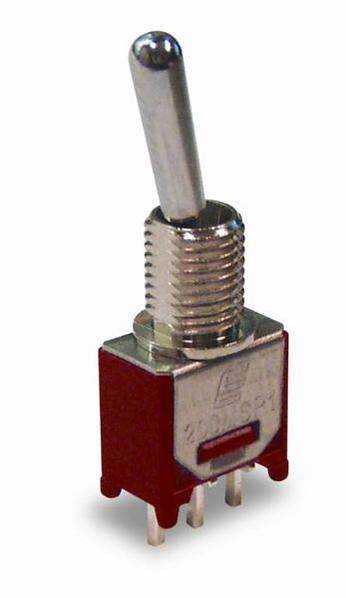

200MSP1T4B1M2QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
Toggle Switches SPDT ON NONE ON TGL
PDF
/
Inventory: 3310
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Housing Material STAINLESS STEEL
Actuator Material Brass, Chrome Plated
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
End Contact Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2012
Series 200
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Voltage - Rated DC 28V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 120V
Body Length or Diameter 8.128mm
Body Breadth 5.08 mm
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 4.95mm Dia
Contact Resistance 0.01mOhm
Insulation Resistance 1000000000Ohm
Contact Current(DC)-Max 3A
Dielectric Withstanding Voltage 1000VRMS V
Electrical Life 30,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 10-48
Contact Current(AC)-Max 1A
Contact (AC) Max Rating R Load 1A@250VAC
Contact Voltage(AC)-Max 250V
PCB Hole Count 3
Bushing Length 0.22 inch
Dimensions
Body Height 8.636mm
Length - Termination 0.133 inch
Actuator Length 12.70mm
Compliance
RoHS Status ROHS3 Compliant
