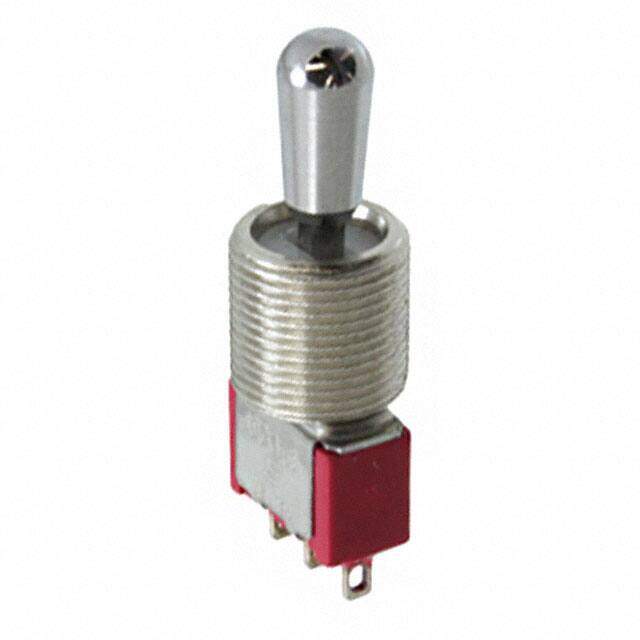

100SP4T7B13M1QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $4.25
Unit Price: USD $4.2504
≥1 USD $4.2504
≥10 USD $3.79016
≥100 USD $3.58864
≥500 USD $3.460512
≥1000 USD $3.295653
≥3000 USD $3.149203
Inventory: 164
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel
Mounting Type Panel Mount
Insulation Material DIALLYL PHTHALATE
Housing Material STAINLESS STEEL
Actuator Material Brass, Chrome Plated
Center Contact Plating SILVER
Center Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 100
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 120V
Body Length or Diameter 12.7mm
Body Breadth 6.858 mm
Actuator Type Standard Round
Circuit SPDT
Switch Function Mom-Off-Mom
Panel Cutout Dimensions Circular - 11.91mm Dia
Contact Resistance 0.01mOhm
Contact Current(DC)-Max 5A
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Bushing Thread 15/32-32
Contact Current(AC)-Max 2A
Contact (AC) Max Rating R Load 2A@250VAC
Contact Voltage(AC)-Max 250V
Contact Function (ON)-OFF-(ON)
Bushing Length 0.448 inch
Dimensions
Body Height 8.89mm
Length - Termination 0.078 inch
Actuator Length 13.00mm
Compliance
RoHS Status ROHS3 Compliant
