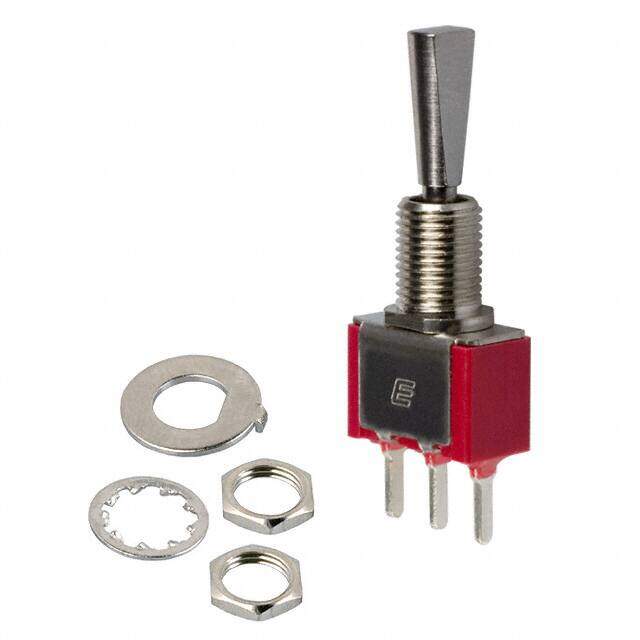

100SP4T6B11M2QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $3.91
Unit Price: USD $3.9072
≥1 USD $3.9072
≥10 USD $3.4848
≥100 USD $3.299296
≥500 USD $3.03013
≥1000 USD $2.895411
≥3000 USD $2.642922
Inventory: 329
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper, Silver
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series 100
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Vertical
Current Rating 5A
Termination Style PC Pin
Voltage - Rated AC 120V
Actuator Type Flat Anti-Rotation
Circuit SPDT
Switch Function Mom-Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Contact Current Rating 5A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Length 12.7mm
Width 6.86mm
Actuator Length 12.30mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
