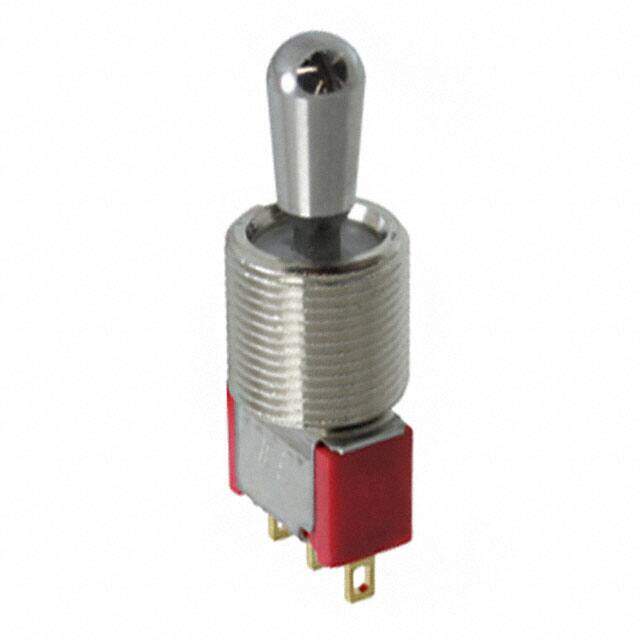

100SP3T7B13M1RE image
Favorite
100SP3T7B13M1RE image
Favorite

100SP3T7B13M1RE

E-Switch
RoHS
RoHS RoHS compliant
Package /
Category Switches / Toggle Switches
Description SWITCH TOGGLE SPDT 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $4.29
Unit Price: USD $4.2856
≥1 USD $4.2856
≥10 USD $3.82096
≥100 USD $3.618208
≥500 USD $3.489024
≥1000 USD $3.32288
≥3000 USD $3.175181
Inventory: 260
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Actuator Length 13.00mm
Length - Termination 0.156 inch
Body Height 9.906mm

Technical

Contact (AC) Max Power Rating R Load 0.4VA@20VAC
Bushing Length 0.448 inch
Bushing Thread 15/32-32
Switch Type TOGGLE SWITCH
Illumination Non-Illuminated
Electrical Life 40,000 Cycles
Contact Resistance 0.01mOhm
Panel Cutout Dimensions Circular - 11.91mm Dia
Switch Function On-Off-On
Circuit SPDT
Actuator Type Standard Round
Body Breadth 6.858 mm
Body Length or Diameter 12.7mm
Voltage - Rated AC 20V
Termination Style Solder Lug
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series 100
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C

Physical

Terminal Material COPPER ALLOY
Actuator Material Brass, Chrome Plated
Housing Material STAINLESS STEEL
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount
Mount Panel
Contact Material Gold

Supply Chain

Factory Lead Time 9 Weeks
