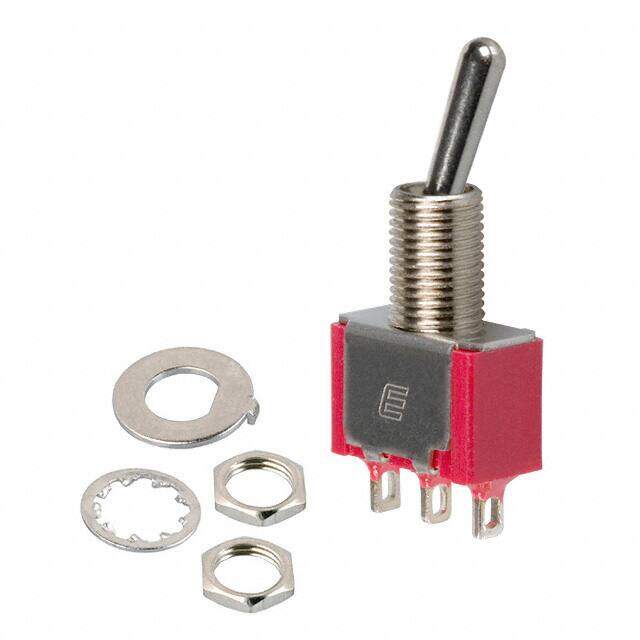

100SP1T1B1M1QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE SPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $2.48
Unit Price: USD $2.4816
≥1 USD $2.4816
≥10 USD $2.22552
≥100 USD $2.102496
≥500 USD $1.90777
≥1000 USD $1.825692
≥3000 USD $1.682111
Inventory: 1168
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Silver
Mount Panel
Mounting Type Panel Mount
Housing Material Stainless Steel
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series 100
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Straight
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 6.35mm Dia
Contact Resistance 100mOhm
Max Voltage Rating (AC) 250V
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Max Voltage Rating (DC) 28V
Switch Type TOGGLE SWITCH
Contact Current Rating 5A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Actuator Length 10.41mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
