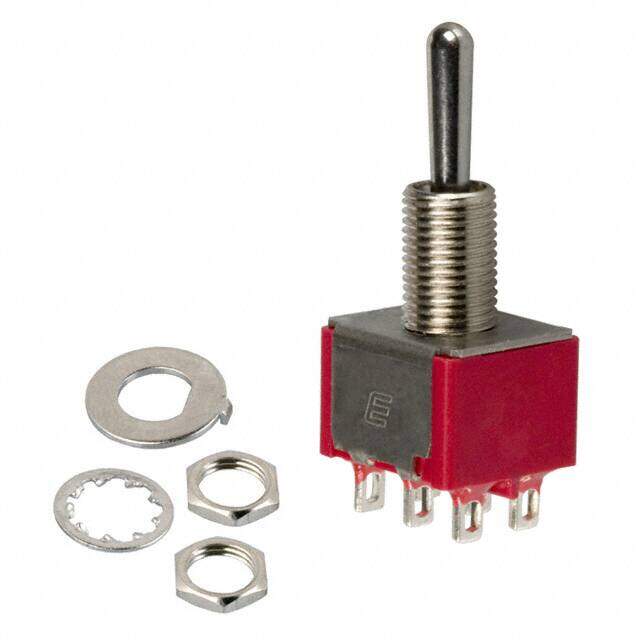

100DP4T1B1M1QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $3.95
Unit Price: USD $3.9512
≥1 USD $3.9512
≥10 USD $3.52704
≥100 USD $3.339424
≥500 USD $3.066888
≥1000 USD $2.930585
≥3000 USD $2.675015
Inventory: 527
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper, Silver
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2006
Series 100
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Vertical
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit DPDT
Switch Function Mom-Off-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Contact Current Rating 5A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 1/4-40
Dimensions
Actuator Length 10.41mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
