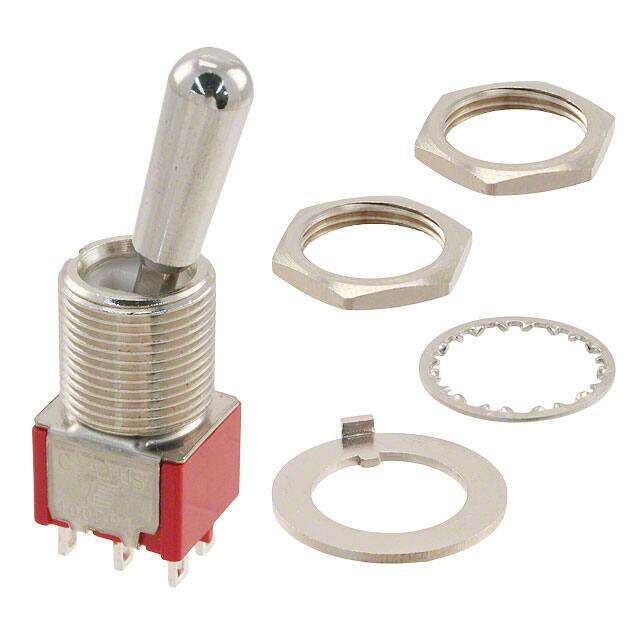

100DP1T8B13M1QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 5A 120V
PDF
/
Buying Options
Total Price: USD $5.11
Unit Price: USD $5.107413
≥1 USD $5.107413
≥10 USD $4.818315
≥100 USD $4.545581
≥500 USD $4.288289
≥1000 USD $4.045553
Inventory: 5361
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper, Silver
Contact Plating Silver
Mount Panel
Mounting Type Panel Mount
Actuator Material Brass, Chrome Plated
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2005
Series 100
JESD-609 Code e4
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Voltage - Rated DC 28V
Current Rating (Amps) 5A AC/DC
Orientation Vertical
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 11.91mm Dia
Electrical Life 40,000 Cycles
Illumination Non-Illuminated
Switch Type TOGGLE SWITCH
Contact Current Rating 5A
Illumination Type Illuminated, Non-Illuminated
Bushing Thread 15/32-32
Dimensions
Length 12.7mm
Width 11.4mm
Actuator Length 18.00mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
